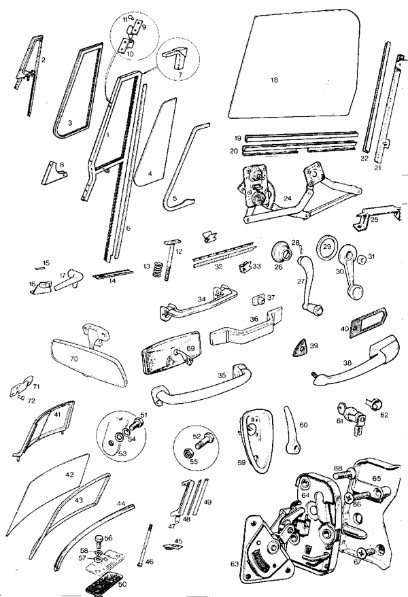

Sprite/Midget 1098cc & 1275cc Door Fittings and Windscreen Assembly

Sprite Catalog Page 12-17
Records - of

#

Part No

Qty

Description

AHA7402 1
1/4 LIGHT FRAME RH
CHROME PLATED
AHA7403 1
1/4 LIGHT FRAME LH
CHROME PLATED
AHA9973 1
1/4 LIGHT ASSY
FROM GAN5-121650 ON
AHA9974 1
1/4 LIGHT ASSY
CAN BE USED ON EARLY CARS
AHA7416 1
SEAL 1/4 RIGHT HAND QUARTER LIGHT WINDOW SPRITE/MIDGET
RH
AHA7417 1
SEAL 1/4 LIGHT LH
LH
AHA7482 1
1/4 LIGHT SAFETY GLASS, MIDGET
RH
AHA7483 1
GLASS, L/H VENT SPM
LH
27H8705M A/R
GLAZING RUBBER
19" LONG
AHH7448 2
CHANNEL FELT ROLL UP WINDOW VENT SIDE FORWARD
FITS INSIDE 1/4 LIGHT
AHH8935 2
CRNR 1/4 LITE 64-72
USE PRIOR TO AHA9986
AHA9986 2
C0RNER 1/4 LITE WINDOW SS 72-
GAN5-121650 ON
AHA9993 1
CAPPING
RH
AHA9994 1
CAPPING
LH
AHA9982 1
UPPER PIVOT
RH
AHA9983 1
UPPER PIVOT
LH
10  AHA9984 1
LOWER PIVOT
RH
10  AHA9985 1
LOWER PIVOT
LH
12  AHA7468 2
BOTTOM PIVOT
USE ON ALL 1/4 LIGHTS PRIOR TO GAN5-121650
12  AHA9981 2
BOTTOM PIVOT
FITTED ON ALL CARS AFTER GAN5-121650
13  AHA7544 2
SPRING MGB MGB & SPRITES
14  AHA7746 1
SEAL 1/4 VENT/DOOR RH
1/4 LIGHT TO DOOR RH
14  AHA7747 1
SEAL 1/4 VENT/DOOR LH
1/4 LIGHT TO DOOR LH
15  AHA7474 2
PIN
16  AHA7475 1
CATCH PLATE
RH
16  AHA7476 1
CATCH PLATE
LH
17  AHA8446 1
HANDLE R/H FLAT MGB MIDGET,MGB 68-
CHROME FLAT
17  AHA8447 1
HANDLE L/H FLAT MGB MIDGET,MGB 68-
CHROME FLAT
18  AHA8431 1
DOOR GLASS RH
RH
18  AHA8432 1
DOOR GLASS LH
LH
19  37H4297 A/R
SCRAPER WINDOW SPRIDGET
18.375" 46.7cm
20  AHA7042 2
LOWER CHANNEL
21  AHA8405 1
REAR CHANNEL
RH
21  AHA8406 1
REAR CHANNEL
LH
22  AHA8407 2
FELT WINDOW CHANNEL
24  AHA7038 1
WINDOW REGULATOR RH
USE WITH CHROME WINDOW HANDLE
24  AHA7039 1
WINDOW REGULATOR LH
USE WITH CHROME WINDOW HANDLE
24  AHA8533 1
WINDOW REGULATOR RH MIDGET 1500
USE WITH PLASTIC WINDOW HANDLE
24  AHA8534 1
WINDOW REGULATOR LH MIDGET 1500
USE WITH PLASTIC WINDOW HANDLE
25  AHA7431 2
WINDOW STOP
26  ADB709 2
WINDOW CRANK ESCUTCH
27  ADH5481 2
HANDLE, WINDOW WINDER undefined
28  ALH1527 2
PIN TR TR250-GT6-TR6-SPM-
29  AHA8517 2
ESCUTCHEON WINDOW WINDER undefined
30  CZA7109 2
MK3+ MINI & MINI COOPER INTERIOR WINDOW HANDLE
31  GHF1560 A/R
CLIP SEAM COVER
TO BE USED WITH AHA7634/5
32  AHA7719 1
MIDGET/SPRITE WINDOW BRUSH SEAL RH
RH
32  AHA7720 1
WINDOW BRUSH SEAL LH
LH
32  AHA7634 1
SEAL RH WINDOW SCRAPR
STOPS RAIN ENTERING DOOR CASING RH
32  AHA7635 1
SEAL LH WINDOWSCRAPER
STOPS RAIN ENTERING DOOR CASING LH
33  AHA7838 12
CLIPS***SEE GHF1560***
TO BE USED WITH AHA7719/20
34  4B3479 2
PULL HANDLE
CHROME PLATED
35  GLZ118 2
DOOR PULL BLACK 1275 AFTER '71
PLASTIC FINISH
36  RGX6476 2
PULL HANDLE
BEIGE
36  RGN6476 2
PULL HANDLE
NAVY
36  XGT2456 2
PULL HANDLE
OCHRE
36  RGK6476 2
PULL HANDLE
AUTUMN LEAF
36  RGA6476 2
PULL HANDLE
BLACK
38  AHA8530 2
DOOR HANDLE SPM MIDGET
39  14G2791 2
GASKET DOOR HANDL FNT
40  14G2792 2
GASKET DOOR HANDL REA
41  CHA704 1
WINDSCREEN ASSY
42  AHA7959 1
GLASS
TOUGHENED
42  AHA8008 1
WINDSHIELD CLEAR 64-80 MG MIDGET and SPRITE
LAMINATED
43  88G455 1
SEAL WINDSHIELD '64 - '80 SPRIGET
44  AHA7698 1
SEAL W/S-BODY 64-80 SPRIDGET
LOWER
45  AHA7093 1
PAD POST RIGHT 64-80 SPRITE
RH
45  AHA7094 1
PAD POST LH 64-80
LH
46  AHA7061 1
MIRROR CENTER ROD-'64-69
CLAMP ON MIRROR
46  AHA8561 1
WINDSCREEN ROD
MIRROR FITTED TO TOPRAIL
47  AHA7063 1
WINDSCREEN PILLAR
RH
47  AHA7064 1
WINDSCREEN PILLAR
LH
48  AHA7080 1
SEAL RETAINER
RH
48  AHA7081 1
SEAL RETAINER
LH
48  AHH7138 12
RIVETS
FITS RETAINER TO PILLAR
49  AHA7092 2
SEAL
1/4 LIGHT TO WINDSCREEN PILLAR
50  AHA7779 1
CENTRE PACKING
58  GHF331 2
LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS
59  AHA7040 1
ESCUTCHEON
RH
59  AHA7041 1
ESCUTCHEON
LH
59  AB604023 4
SCREW ESCUTCHEON
CHROME FITS AHA7040/1
60  AHA8433 2
DOOR HANDLE INSIDE 64-79 SPRIGET
60  AHA8433 2
DOOR HANDLE INSIDE 64-79 SPRIGET
61  AHA8531 1
LOCK ASSY R/H SPM MIDGET
RH COMPLETE WITH CLIP
61  AHA8532 1
LOCK DOOR - LH
LH COMPLETE WITH CLIP
62  AHA7408 2
LOCK CLIP
63  AHA7144 1
INSIDE DOOR LOCK REMOTE RIGHT
RH
63  AHA7145 1
INSIDE DOOR LOCK REMOTE LEFT
LH
64  AHA7033 1
DOOR LOCK
USE PRIOR TO AHA9173
64  AHA7034 1
DOOR LOCK
USE PRIOR TO AHA9174
64  AHA9173 1
DOOR LOCK RH
FITTED FROM SPRITE HAN9-72041 & MIDGET GAN4-60460
64  AHA9174 1
DOOR LOCK LH
FITTED FROM SPRITE HAN9-72041 & MIDGET GAN4-
65  CZA3310 1
STRIKER R/H MGB TR SPM MGB,TR250,TR6
RH USE WITH AHA9173/4
65  CZA3311 1
STRIKER L/H MGB TR SPM MGB,TR250,TR6
LH USE WITH AHA9173/4
69  BHA4806 1
MIRROR INT; 64-69
70  BHA4960 2
MIRROR INTERIOR 70-80 MG MIDGET & AH SPRITE
71  AHA8483 2
BRACKET-HOOD LATCH MGB, SPM
72  AHH7138 8
BRACKET HOOD FASTENER RIVET
