Sprite/Midget Sprite Mk I & II, Midget Mk I Reconditioned Gauges & Fixings

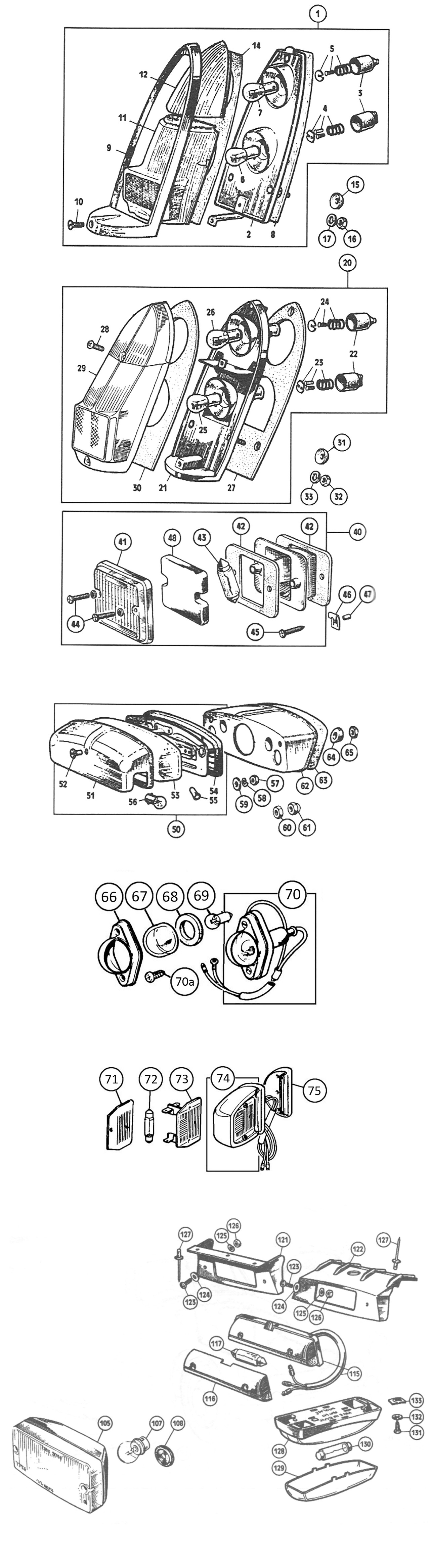

Sprite Catalog Page 10-12
Records - of

#

Part No

Qty

Description

BHA4372E 1
SN 6135/00 SPEEDO MPH
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS 1472 4.22-1 RATIO
BHA4373E 1
SN 6135/01 SPEEDO KPH
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS 920 4.22-1 RATIO
2A9067E 1
SN 6155/10 SPEEDO MPH
SPRITE I AN5 SMITH 1472 4.22-1 RATIO
2A9077E 1
SN 6155/11 SPEEDO KPH
SPRITE I AN5 SMITH 920 4.22-1 RATIO
BHA4210E 1
SN 6126/00 SPEEDO MPH
948cc SPRITE II DRUM BRAKE MODEL HAN6 SMITHS 1472 4.22-1 RATIO
BHA4211E 1
SN 6126/01 SPEEDO KPH
948cc SPRITE II DRUM BRAKE MODEL HAN6 SMITHS 920 4.22-1 RATIO
BHA4208E 1
SN 6125/02 SPEEDO MPH
948cc MIDGET I DRUM BRAKE MODEL GAN1 JAEGER 1472 4.22-1 RATIO
BHA4209E 1
SN 6125/03 SPEEDO KPH
948cc MIDGET I DRUM BRAKE MODEL GAN1 JAEGER 920 4.22-1 RATIO
BHA4212E 1
RN 2312/01 MECHANICAL
948cc MIDGET I DRUM BRAKE MODEL GAN1 JAEGER
BHA4213E 1
RN 2313/00 MECHANICAL
948cc SPRITE II DRUM BRAKE MODEL HAN6 SMITHS
2A9068E 1
RN 2351/02 MECHANICAL TACH
SPRITE I AN5 SMITH
BHA4380E 1
RV1 2401/00 ELECTRIC TACHOMETER
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS POSITIVE EARTH
BHA4381E 1
FG 2530/70 FUEL GUAGE
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
2A9069E 1
FG 2530/31 FUEL GAUGE
SPRITE I AN5 SMITH
BHA4215E 1
FG 2530/64 FUEL GUAGE
948cc SPRITE II DRUM BRAKE MODEL HAN6 SMITHS
BHA4214E 1
FG 2530/63 FUEL GUAGE
948cc MIDGET I DRUM BRAKE MODEL GAN1 JAEGER
ADG04 1
SMITHS DUAL WATER TEMP/OIL PRESSURE GAUGE-MECHANICAL
948cc MIDGET I DRUM BRAKE MODEL GAN1 JAEGER EXTERNALLY ILLUMINATED
BHA4250E 1
GD 1501/11 "C" DUAL GUAGE
948cc MIDGET I DRUM BRAKE MODEL GAN1 JAEGER
ADG04 1
SMITHS DUAL WATER TEMP/OIL PRESSURE GAUGE-MECHANICAL
948cc SPRITE II DRUM BRAKE MODEL HAN6 SMITHS EXTERNALLY ILLUMINATED
BHA4249E 1
GD 1502/08"C"DUAL GAUGE
948cc SPRITE II DRUM BRAKE MODEL HAN6 SMITHS
2A9070E 1
GD 1502/01 "F" DUAL GUAGE
SPRITE I AN5 SMITH EXTERNALLY ILLUMINATED NOT ILLUSTRATED
ADG04 1
SMITHS DUAL WATER TEMP/OIL PRESSURE GAUGE-MECHANICAL
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS EXTERNALLY ILLUMINATED
BHA4383E 1
GD 1501/13 "C' DUAL GUAGE
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
AJH5178 2
RING LARGE SEALING
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS TACHO/SPEEDO
17H1304 4
NUT, KNURLED GAUGE MOUNTING
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
17H1642 2
RING SMALL SEALING
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS DUEL/FUEL
10  SPD111 1
CABLE SPEEDO MORRIS & SPRITE- 62
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
11  0722/36 1
TACH OR SPEEDO CABLE 36
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
12  PCR709 1
CABLE CLIP
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
13  189132 1
SPEDDO CABLE CLIP
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
14  ACH8529 1
RUBBER SLEEVE
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS RHD
18  2A5640 1
PIPE OIL GAUGE TO FLEX
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
19  13H632 1
REDUCTION BOX TACH
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
20  RFN305 1
SPEEDO CABLE GROMMET***NO LONGER AVAIL***
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS THROUGH FOOTWELL
21  3H822 1
TACH CABLE GROMMET THROUGH BRACKET
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS THROUGH BRACKET
22  ACA5420 1
HOSE OIL FLEX
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
24  2A5637 1
PIPE BLOCK TO FLEX
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS USE AHA6392
24  AHA6392 1
PIPE BLOCK TO FLEX
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
25  2A269 1
ADAPTER OIL GAUGE PIPE -MINI & MINI COOPER S
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
26  6K464 1
SEALING WASHER
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
27  PCR207 1
OIL PIPE CLIP
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS ON FOOTWELL
30  PCR307 4
CLIP CAPILLARY TUBE
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
31  BHA4794 1
SPEEDO CABLE 90 DEG. AADAPTER
1098cc SPRITE II/MIDGET I DISC BRAKES HAN7 GAN2 MODEL SMITHS
32  TACH308 1
TACH 3"SMITHREPRO 8K
NOT ILLUSTRATED VDO GUAGE, SMITH FACE REPLICA
32  TACH310 1
TACH 3"SMITHREPRO 10K
NOT ILLUSTRATED VDO GUAGE, SMITH FACE REPLICA
32  TACH408 1
TACH 4"SMITHREPRO 8K
NOT ILLUSTRATED VDO GUAGE, SMITH FACE REPLICA
32  TACH410 1
TACH 4"SMITHREPRO 10K
NOT ILLUSTRATED VDO GUAGE, SMITH FACE REPLICA
