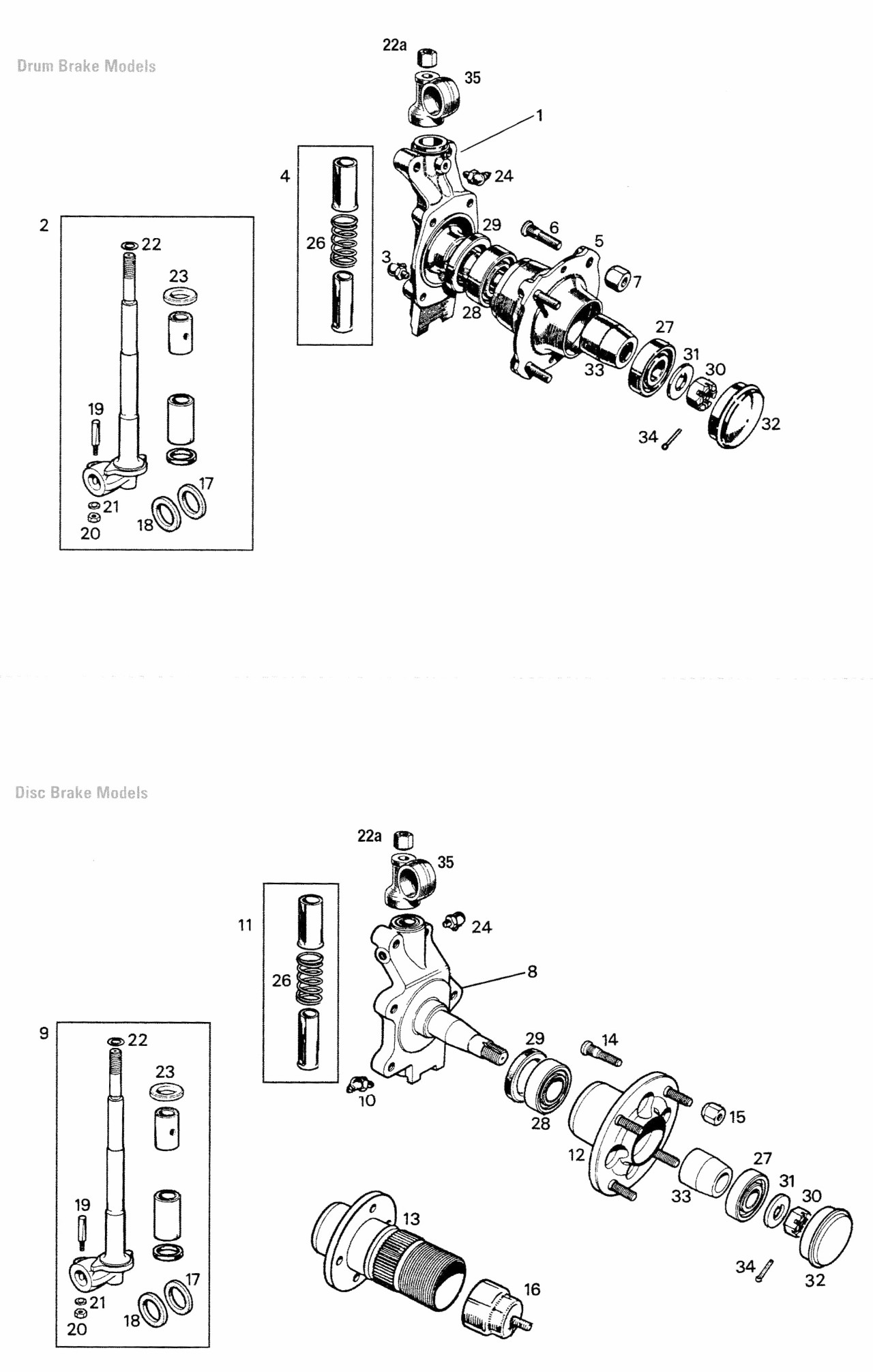

Sprite/Midget Sprite Mk I & II, Midget Mk I King Pin and Front Hub Assemblies

Sprite Catalog Page 7-1
Records - of

#

Part No

Qty

Description


DRUM BRAKE MODELS ONLY
2A4304BE 2
DRUM BRAKE SWIVEL HUB
No Longer Available
QP314TC 1 KIT
KING PIN KIT DRUM FOR DRUM BRAKES 1958-1962
( 1/CAR)
LN30041 2
90 DEG LOWER NIPPLE
USE UHN490
2A4011 2
DUST TUBE KIT DRUM BRAKES
USE KGM937
2A4348 2
HUB
No Longer Available
2A4066 8
WHEEL STUD LUG STANDARD 1 1/2"
USE 21A2064
88G322 8
LUG NUT STOCK
USE WITH VENTED WHEEL AHA5539

DISK BRAKE MODELS ONLY HAN7/GAN2 ON
BTA744E 1
STUB AXLE WITH KING PIN KIT LEFT SPRIGET DISC BRAKES
RH EXCHANGE STUB AXLE AND KING PIN
BTA745E 1
STUB AXLE WITH KING PIN KIT RIGHT SPRIGET DISC BRAKES
LH EXCHANGE STUB AXLE AND KING PIN NOT ILLUSTRATED
8G4220 1 KIT
KING PIN KIT DISC BRAKE SPRIGET
USE QP624TC - 1 CAR KIT (NOT SHOWN)
10  UHN445 2
45DEG BOTTOM NIPPLE ZERK GREASE FITTING
11  BTA606 2
DUST TUBE LOWER DISC BRAKE
11  2A4010 2
UPPER DUST TUBE
948-1500CC
12  BTA1254 2
DISC BRAKE HUB
STEEL WHEELS ONLY
13  BTA470 1
12 TPI RIGHT HAND SPLINED HUB
LEFT HAND THREADS, SPRITE II & MIDGET I
13  BTA471 1
12 TPI LEFT HAND SPLINED HUB
RIGHT HAND THREADS - NOT ILLUSTRATED, SPRITE II & MIDGET I
13  BTA686 1
8 TPI RIGHT HAND SPLINED HUB
LEFT HAND THREAD - NOT ILLUSTRATED, SPRITE III & MIDGET II ONWARD
13  BTA687 1
8 TPI LEFT HAND SPLINED HUB
RIGHT HAND THREAD - NOT ILLUSTRATED, SPRITE III & MIDGET II ONWARD
14  21A2064 8
WHEEL STUD LUG STANDARD 1 1/2"
15  88G322 8
WHEEL NUT
USE WITH NON VENTED WHEEL AHA6455
16  BTC392 2
FRONT GREASE CAP/WIRE
17
ALL MODELS
17  2A4205 2
CORK SEAL FULCRUM SEAL
SMALL INTERNAL DIAMETER
18  2A4206 2
CORK SEAL FULCRUM PIN
LARGE INTERNAL DIAMETER
19  51K1769 2
PIN TAPERED LOWER FULCRUM LOCK
FILE TO SUIT
20  GHF206 2
NUT TAPERED PIN FIX
3/16"
21  WL700101 2
TAPERED PIN SPRING WASHER
3/16
22  2A4007 A/R
SHIM, KING PIN
.008"
23  2A4006 2
THRUST WASHER
No Longer Available - COMES IN NEW KING PIN KITS
24  LN30041 2
90 DEGREE GREASE NIPPLE, ZERK FITTING
26  6K653 2
SPRING DUST TUBES SPRITE/MIDGET
27  GHB128 2
BEARING FRONT OUTER
USE SUS166 KIT
28  GHB129 2
BEARING INNER
USE SUS166 KIT
29  GHS102 2
SEAL,WHEEL BEARING SPRIDGET FRONT MINI REAR
30  51K328 2
NUT FRONT SPINDLE ALL
31  2A4003 2
WASHER FRONT SPINDLE
32  2A4067 2
GREASE CAP STEEL WHEELS
33  88G321 2
SPACER FRONT BEARINGS
34  GHF504 2
COTTER PIN FOR SPINDLE CASTLE NUT
35  SUS166T 2
TIMKEN TAPERED ROLLER BEARING KIT
ALTERNATIVE TO SUS166 KITS
22A  GHF224 2
NUT, 7/16" NYLOCK
