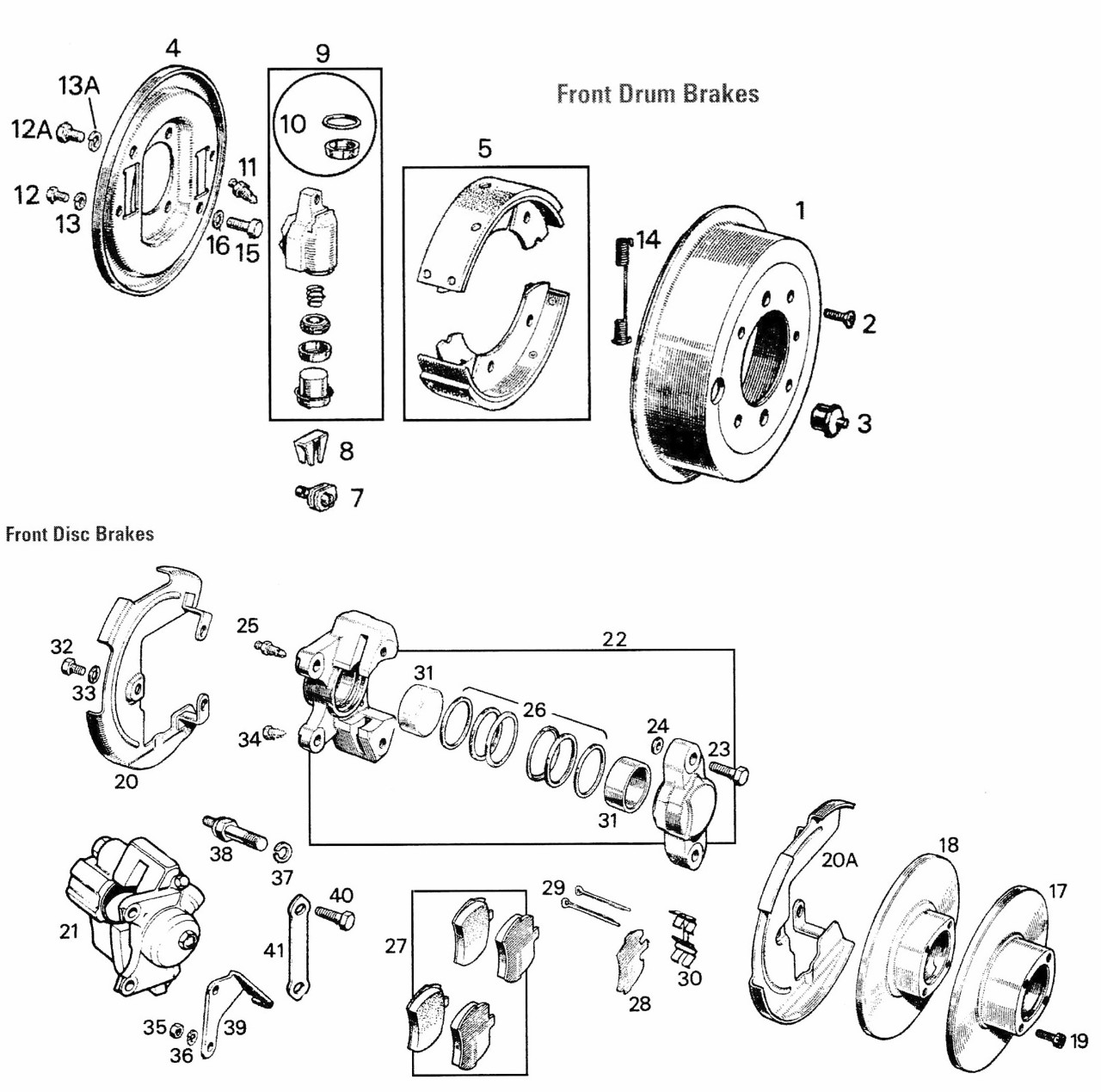

Sprite/Midget Sprite Mk I & II, Midget Mk I Front Brakes
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | 2A7168 | 2 | BRAKE DRUM 7 USE FBK124 |
| 2 | CMZ407 | 4 | SCREW DRIVE FLANGE TO BRAKE DRUM STANDARD LENGTH 1/4" |
| 3 | 2A7228 | 2 | PLUG BRAKE DRUMS |
| 4 | 17H7543 | 1 | BRAKE BACK PLATE RIGHT FRONT DRUM BRAKES USE U-17H7543 |
| 4 | 17H7544 | 1 | BRAKE BACK PLATE LEFT FRONT DRUM BRAKES USE U-17H7544 |
| 5 | GBS704AF | 1 | BRAKE SHOE SET FRONT 948cc 7" USE FBK120 - UP TO HAN6 12867 |
| 7 | AAA423K | 4 | ADJUSTER FRONT BRAKES USE RBK113-114 |
| 8 | AAA421 | 4 | MASK, ADJUSTER USE RBK113-114 |
| 9 | GWC110 | 2 | WHEEL CYLINDER FRONT RIGHT USE FBK105 - NOT ILLUSTRATED |
| 9 | GWC111 | 2 | WHEEL CYLINDER LEFT FRONT USE FBK106 |
| 10 | 8G8245 | 4 | WHEEL CYLINDER REBUILD KIT USE FBK107 |
| 11 | 3H2428 | 2 | BRAKE BLEED SCREW LARGE |
| 12 | 7H7520 | 4 | BOLT, 1/4" (SMALL) FOR WHEEL CYLINDER TO BACK PLATE |
| 13 | GHF331 | 4 | LOCK WASHER, 1/4" |
| 14 | AAA4776 | 4 | BRAKE RETURN SPRING USE FBK112 |
| 15 | 51K1368 | 8 | BACK PLATE TO STUB AXLE SCREW No Longer Available |
| 16 | GHF322 | 8 | LOCK WASHER, 1/4" |
| 17 | BTA383 | 2 | BRAKE DISC (ROTOR) FOR DISC (STEEL) WHEELS |
| 18 | BTA469 | 2 | BRAKE DISC (ROTOR) FOR WIRE WHEELS |
| 19 | BTA370 | 8 | BOLT FOR DISC ROTOR TO FRONT HUB |
| 20 | BTA472 | 1 | RIGHT HAND BRAKE DISC DUST COVER |
| 20 | BTA473 | 1 | LEFT HAND BRAKE DISC DUST COVER |
| 21 | 17H9439 | 1 | RIGHT HAND BRAKE CALIPER |
| 22 | 17H9438 | 1 | LEFT HAND BRAKE CALIPER |
| 23 | 27H4353 | 4 | BRIDGE BOLT |
| 24 | 17H7679 | 2 | SEAL BETWEEN CALIPER HALVES |
| 25 | 3H2428 | 2 | BRAKE BLEED SCREW LARGE |
| 26 | M2601 | 2 | BRAKE CALIPER PISTON SEAL KIT DOES NOT INCLUDE BRIDGE SEAL (24) |
| 27 | GBP281 | 1 | FRONT DISC BRAKE PADS, SET OF FOUR |
| 28 | 17H2460 | 4 | SHIM ANTI-SQUEAL SOLD EACH 2 REQUIRED PER CALIPER |
| 29 | PS610241 | 1 | COTTER PIN BRAKE PAD RETAINING SPRIDGET 4-PACK |
| 30 | 17H7963 | 2 | BRAKE PAD RETAINER |
| 31 | 17H7960 | 4 | CALIPER PISTON |
| 32 | SH605031 | 2 | BOLT, 5/16 UNF X 3/8" No Longer Available - CAN CUT 1/2" DOWN |
| 33 | WE600051 | 2 | SPRING WASHER |
| 34 | 17H7917 | 2 | PLUG BLANKING |
| 35 | GHF201 | 4 | NUT, 5/16" UNF ALTERNATIVE TO ITEMS 38 TO 41 - CHANGE POINT NOT AVAILABLE |
| 36 | GHF332 | 4 | LOCK WASHER, 5/16 USE WL2051 - ALTERNATIVE TO ITEMS 38 TO 41 - CHANGE POINT NOT AVAILABLE |
| 37 | GHF334 | 4 | LOCK WASHER, 7/16 USE WL3071 - ALTERNATIVE TO ITEMS 38 TO 41 - CHANGE POINT NOT AVAILABLE |
| 38 | BTA444 | 4 | BOLT, CALIPER MOUNTING No Longer Available - ALTERNATIVE TO ITEMS 38 TO 41 - CHANGE POINT NOT AVAILABLE |
| 39 | BTA442 | 1 | RIGHT HOSE BRACKET No Longer Available - ALTERNATIVE TO ITEMS 38 TO 41 - CHANGE POINT NOT AVAILABLE |
| 39 | BTA443 | 1 | LEFT HAND HOSE BRACKET No Longer Available - ALTERNATIVE TO ITEMS 38 TO 41 - CHANGE POINT NOT AVAILABLE |
| 39 | BTA792 | 1 | RIGHT HAND BRAKE HOSE BRACKET (NOT SHOWN) ALTERNATIVE TO ITEMS 35 TO 39 -CHANGE POINT UNAVAILABLE |
| 39 | BTA793 | 1 | LEFT HAND BRAKE HOSE BRACKET (NOT SHOWN) ALTERNATIVE TO ITEMS 35 TO 39 -CHANGE POINT UNAVAILABLE |
| 40 | BTA789 | 4 | BOLT CALIPER SPRIDGET ALTERNATIVE TO ITEMS 35 TO 39 -CHANGE POINT UNAVAILABLE |
| 41 | BTC114 | 2 | LOCKTAB DISC BRAKE CALIPER 64-79 SPRIGET ALTERNATIVE TO ITEMS 35 TO 39 -CHANGE POINT UNAVAILABLE |
| 12A | SH605051 | 4 | BOLT, 5/16" UNF X 5/8" USE HF0505 |
| 13A | GHF332 | 4 | LOCK WASHER, 5/16" USE WL2051 |
