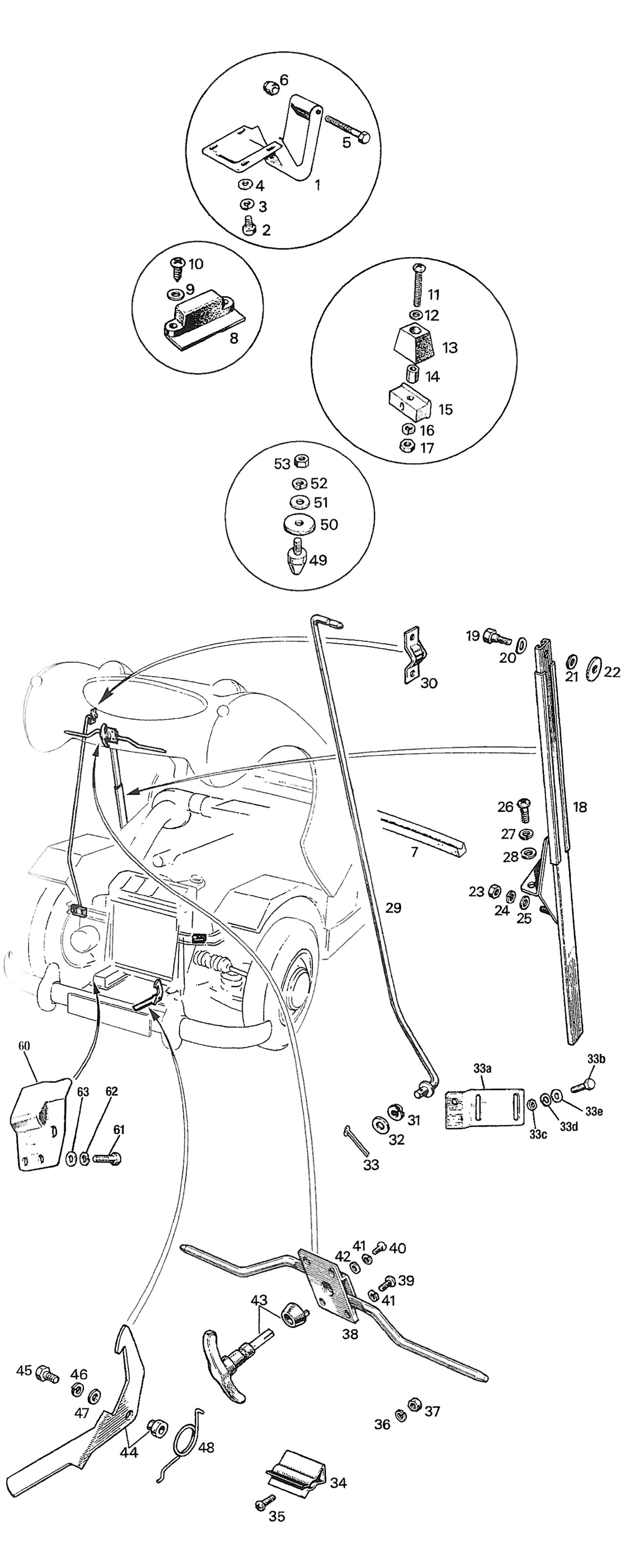

Sprite/Midget Sprite Mk. I Bonnet Fittings & Fixings

Sprite Catalog Page 12-3
Records - of

#

Part No

Qty

Description

144684 2
HINGE
SH604051 8
SCREW HOOD TO HINGE
1/4"
GHF331 8
LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS
1/4"
GHF300 8
WASHER
1/4"
BH605241 2
BOLT HEX 5/16"UNFX3" ZP
5/16"
LNZ105 2
NUT MGB & AH & MIDGET
5/16" ALTERNATIVE
GHF222 2
NUT NYLOCK 5/16" UNF
5/16" NOT ILLUSTRATED
AHA5225 1
SEAL BONNET/BODY BUGEYE
14A4874 4
BUFFER SIDE BONNET BUGEYE
PWZ102 8
FLAT WASHER
1/8"
10  PTZ605 8
SCREW
11  PMZ328 2
SCREW
3/16"
12  PWZ203 2
WASHER FOR ACC5062
3/16"
13  ALA1716 2
BUFFR BONNT WHL ARCH
14  AHA5399 2
DISTANCE TUBE
15  AHA5400 2
BUFFER MOUNTING BLOCK
16  WL700101 2
SPRING WASHER
3/16"
17  GHF206 2
NUT TAPERED PIN FIX
3/16"
18  14A4691 2
BONNET STAY BUGEYE
19  14A4705 2
BOLT SHOULDER BONNET STAY
20  AWZ105 2
WASHER for CLZ549 clevis pin for hand brake quadrant
5/16"
21  GHF301 2
FLAT WASHER
5/16"
22  2K9030 2
FLAT WASHER
23  GHF206 2
NUT TAPERED PIN FIX
3/16"
24  WL700101 2
SPRING WASHER
3/16"
25  GHF306 2
FLAT WASHER
3/16"
26  SE604041 4
DOOR HINGE SCREWS
1/4"
27  GHF331 4
LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS
1/4"
28  GHF300 4
WASHER
1/4"
29  AHA5232 1
HOOD PROP SPR MKI*NO LONGER AVAILABLE
30  BNK1500 1
CLIP
31  AJD7731 1
SPRING WASHER
5/16"
32  GHF301 1
FLAT WASHER
5/16"
33  GHF502 1
PIN SPLIT
34  AHH5460 1
CLIP PROP ROD
35  PMZ306 2
Screw 3/16" unf 3/8"long--use SE910161 and cut to length
3/16"
36  WL700101 2
SPRING WASHER
3/16"
37  GHF206 2
NUT TAPERED PIN FIX
3/16"
38  14A4712 1
LOCK ASSEMBLY BONNET BUGEYE
39  PMZ308 4
SCREW LITTLE
3/16"
40  6K9833 1
SCREW
3/16"
41  WL700101 5
SPRING WASHER
3/16"
42  GHF306 5
FLAT WASHER
3/16"
43  14A4891 1
BONNET HANDLE & TRIM '58-'61
44  14A4707 1
BONNET SAFETY CATCH BUGEYE
45  GHF101 1
SET SCREW
1/4"
46  GHF331 1
LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS
1/4"
47  GHF300 1
WASHER
1/4"
48  AHA5472 1
SPRING FOR SAFE CATCH
48  14A4733 2
BONNET LOCATING SPIKE
50  AHA5442 2
RUBBER WASHER
51  53K3427 2
PLAIN WASHER
5/16"
52  GHF332 2
LOCKWASHER 5/16 IN VARIOUS
5/16"
53  GHF201 2
5/16 PLAIN NUT
5/16"
