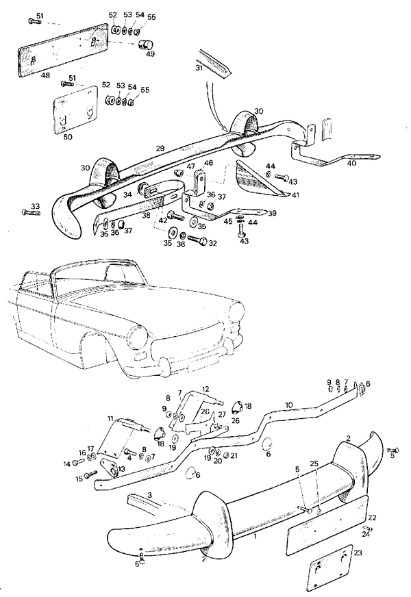

Sprite/Midget Bumpers, No. Plates & Fittings Sprite II & Midget i
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 0 | FRONT BUMPER FRONT BUMPER |
||
| 1 | AHA5695 | 1 | BUMPER BLADE/FT 61-69 |
| 2 | AHA5686 | 2 | OVER-RIDER 61-69 |
| 3 | AHA5686P | 4 | BUMPER OVER - RIDER PACKING(4) SPRITE II MIDGET I 5" LENGTH |
| 4 | BH606111 | 2 | OVER-RIDER BOLT 3/8" |
| 5 | ACH9287 | 3 | BOLT CHROME BUMPER LONG |
| 6 | 11B5721 | 5 | SPACER WASHER |
| 7 | GHF302 | 5 | FLAT WASHER 3/8" |
| 8 | GHF333 | 5 | LOCKWASHER 3/8 IN undefined 3/8" |
| 10 | AHA5696 | 1 | BMPR SPRING BAR 64 ON |
| 11 | AHA5521 | 1 | MOUNT - FRONT BUMPER RIGHT SPRITE II / MIDGET I |
| 12 | AHA5522 | 1 | MOUNT - FRONT BUMPER LEFT SPRITE II / MIDGET I |
| 13 | AHA6498 | 2 | TOWING EYE OPTIONAL |
| 16 | GHF333 | 4 | LOCKWASHER 3/8 IN undefined 3/8" |
| 17 | GHF302 | 4 | FLAT WASHER 3/8" |
| 18 | AAA1645 | ||
| 18 | AAA1645 | 2 | GROMMET FT BMPR 62-74 |
| 19 | PWZ208 | 4 | FLAT WASHER 1/2" |
| 20 | GHF335 | 2 | SPRING WASHER 1/2" |
| 22 | ALK3268 | 1 | NUMBER PLATE BACKING NOT USA |
| 23 | AHA5211 | 1 | LICENSE PLATE BACKING USA ONLY |
| 24 | SE604051 | 2 | COUNTERSUNK SCREW FOR DRIVE FLANGE ON COOPER S 7.5" 1/4" |
| 25 | AHH5712 | 2 | WASHER PACKING |
| 26 | GHF331 | 2 | LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS 1/4" |
| 28 | AHA5533 | 1 | MOUNTING BRACKET |
| 28 | 0 | REAR BUMPER REAR BUMPER |
|
| 29 | AHA5673 | 1 | BLADE REAR 61-69 |
| 30 | AHA5686 | 2 | OVER-RIDER 61-69 |
| 31 | AHA5686P | 4 | BUMPER OVER - RIDER PACKING(4) SPRITE II MIDGET I 5" LENGTH |
| 32 | BH606111 | 2 | OVER-RIDER BOLT 3/8" |
| 34 | 11B5721 | 4 | PACKING PIECE |
| 35 | GHF302 | 6 | FLAT WASHER 3/8" |
| 36 | GHF333 | 6 | LOCKWASHER 3/8 IN undefined 3/8" |
| 38 | AHA5675 | 2 | BUMPER SPRING BAR |
| 39 | AHA5677 | 1 | SUPPORT BAR RH '61-'69 MIDGET ALL SPRITE EX. BUGEYE |
| 40 | AHA5678 | 1 | SUPPORT BAR LH '61-'69 MIDGET ALL SPRITE EX. BUGEYE |
| 41 | AHA5675 | 2 | INNER BRACKET |
| 44 | GHF332 | 8 | LOCKWASHER 5/16 IN VARIOUS 5/16" |
| 45 | GHF301 | 6 | FLAT WASHER 5/16" |
| 46 | AHA5679 | 2 | FINISHER SUPPORT BRKT |
| 47 | 14B2685 | 2 | ACORN NUT for BUMPER '61-69 SPRIGET 5/16" |
| 48 | AHA5791 | 1 | NUMBER PLATE BACKING NOT USA |
| 49 | AHA5804 | 2 | BUFFER NOT USA |
| 50 | AHA5211 | 1 | LICENSE PLATE BACKING USA ONLY |
| 52 | AHA5712 | A/R | PACKING 1/4" |
| 53 | AHA5712 | A/R | FLAT WASHER 1/4" |
| 54 | GHF331 | A/R | LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS 1/4" |
| 55 | GHF200 | A/R | NUT undefined 1/4" |
| 55 | NOTE: | AT THE FACTORY SOME SPRITE I REAR OVER-RIDERS (BUMPERETTES) WERE FITTED TO SPRITE II. THE BRACKETS AND FIXINGS ARE NO LONGER AVAILABLE SO THEY HAVE NOT BEEN LISTED. |
