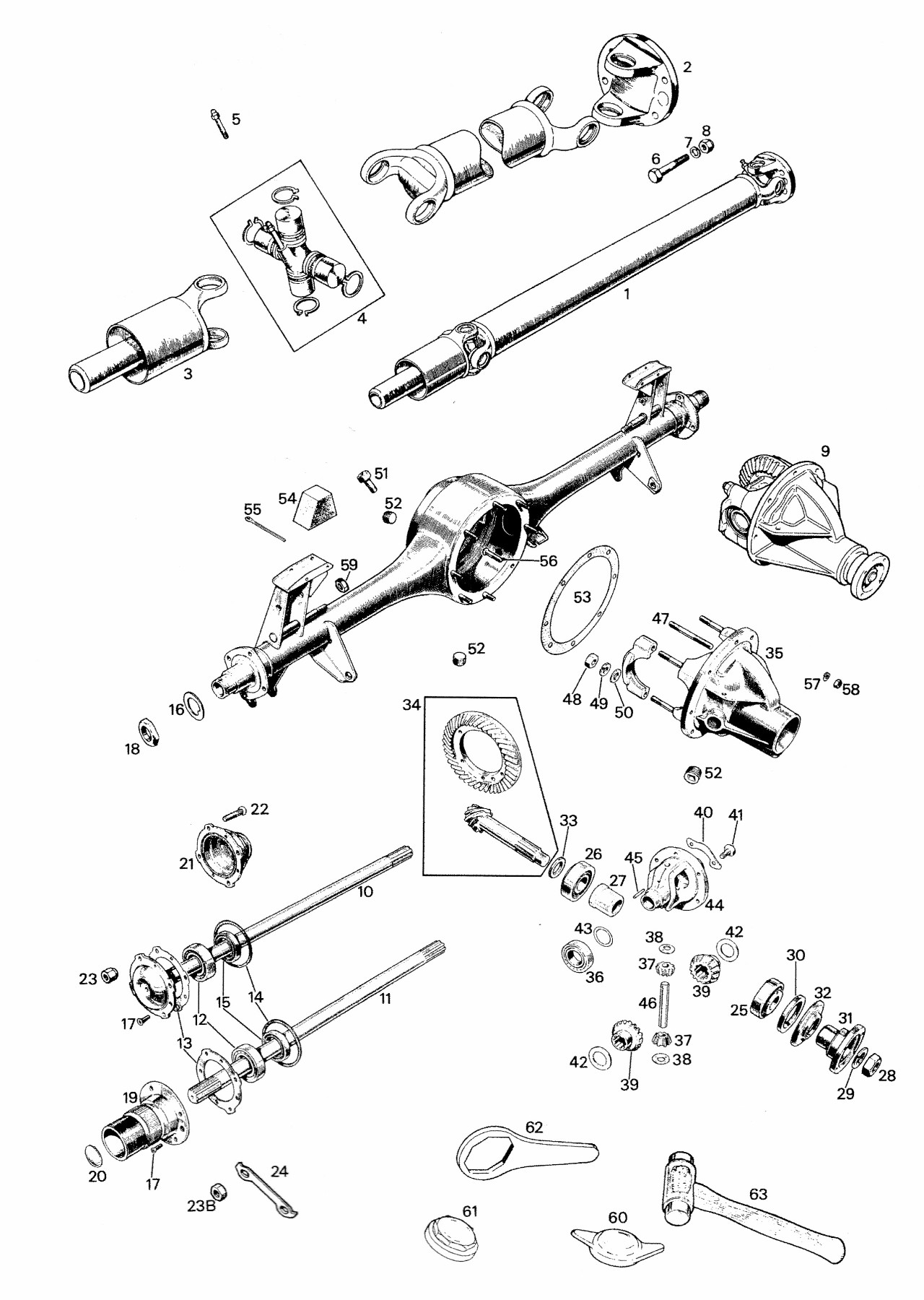

Sprite/Midget Sprite Mk I, II, III & Midget Mk I, II Prop Shaft & Rear Axle Assemblies

Sprite Catalog Page 3-7
Records - of

#

Part No

Qty

Description

AHA9053 1
PROP SHAFT
No Longer Available
7H3863 1
YOKE FLANGE
17H3894 1
YOKE SLEEVE FRONT (948-EARLY 1275 TYPE)
No Longer Available
GUJ101 2
UNIVERSAL JOINT, MINI, MORRIS MINOR, SPRITE
FRONT & REAR
7H3858 2
GREASE NIPPLE
No Longer Available
BH605101 4
BOLT 5/16" UNF X 1.25" LONG
WL2051 4
LOCK WASHER 5/16"
LNZ105 4
FLANGE BOLT NUTS
BTA1345 1
4.55:1 DIFFERENTIAL REBUILT
STANDARD FOR MORRIS MINORS
BTA550 1
4.22:1 DIFFERENTIAL REBUILT
BTA1222 1
3.9:1 DIFFERENTIAL REBUILT
BTA551 1
3.7:1 DIFFERENTIAL REBUILT
BTA521 1
3.55:1 DIFFERENTIAL REBUILT
10  BTA806 2
STOCK AXLE SPRIDGET SOLID WHEEL
STEEL WHEELS
11  BTA807 2
AXLE SPRITE, REAR
WIRE WHEELS
12  GHB130 2
REAR AXLE WHEEL BEARING KIT W/ SEALS SPRIDGET MORRIS 1 SIDE
USE DIF147K
13  DIF150 2
GASKET REAR WHEEL BEARING SPRIDGET MORRIS see DIF147K fr KIT
14  DIF148 2
O-RING REAR WHEEL BEARING see DIF147K for the KIT
15  DIF149 2
OIL SEAL REAR HUB TO AXLE see DIF147K for the KIT
16  DIF102 2
LOCKWASHR REAR WHEEL BEARING HUB SPRIGET MORRIS
17  SF604051 2
SCREW, SHAFT TO HUB
18  2A7103 1
NUT, HUB RETAINING RIGHT HAND
USE DIF103
18  1G3584 1
NUT, HUB RETAINING LEFT HAND
USE DIF104
19  BTA688 1
ADAPTER, WIRE WHEEL 8 T.P.I RIGHT HAND
19  BTA689 1
ADAPTER, WIRE WHEEL 8 T.P.I LEFT HAND
19  BTA488 1
ADAPTER, WIRE WHEEL 12 T.P.I RIGHT HAND
19  BTA489 1
ADAPTER, WIRE WHEEL 12 T.P.I LEFT HAND
20  2K8160 2
WELCH PLUG REAR, WIRE WHEELS
21  2A7087 2
HUB, REAR DISC OR WIRE WHEELS
USE U-2A7087
22  2A7089 8
WHEEL STUD FOR DISC (STEEL) WHEELS
USE SUS175R
22  BTA492 8
BOLT, HUB (WIRE WHEELS ONLY)
23  88G322 8
WHEEL NUT DISC WHEEL
FOR VENTED AND NON-VENTED WHEELS
24  BTA493 4
LOCK TAB (WIRE WHEELS ONLY)
25  BTB440 1
OUTER DIFFERENTIAL PINION BEARING NO FILL PLUG
25  2A7213 1
OUTER DIFFERENTIAL PINION BEARING WITH FILL PLUG
USE DIF118
26  ATA7328 1
INNER DIFFERENTIAL PINON BEARING WITH FILL PLUG
26  ATA7166 1
INNER DIFFERENTIAL PINON BEARING NO FILL PLUG
USE DIF122
27  BTA532 1
COLLAPSIBLE SPACER FOR LATE TYPE DIFFERENTIALS
27  ATA7219 1
SOLID SPACER FOR EARLY DIFFERENTIALS WITH FILLER PLUG
No Longer Available
28  FNZ612 1
NUT 3/4" UNF FOR DIFFERENTIAL PINION
29  WL600121 1
LOCK WASHER 3/4"
30  88G320 1
DIFFERENTIAL OIL SEAL
USE DIF119
31  ATA7056 1
OUTER FLANGE
USE U-ATA7056
32  1G7439 1
DUST COVER
No Longer Available
33  ATA7123 1
SHIM PINION (.130")
No Longer Available
33  ATA7124 1
SHIM PINION (.128")
No Longer Available
33  ATA7125 1
SHIM PINION (.126")
No Longer Available
33  ATA7126 1
SHIM PINION (.124")
No Longer Available
33  ATA7127 1
SHIM PINION (.122")
No Longer Available
33  ATA7128 1
SHIM PINION (.120")
No Longer Available
33  ATA7129 1
SHIM PINION (.118")
No Longer Available
33  ATA7130 1
SHIM PINION (.116")
No Longer Available
34  BTA539 1
4.22:1 CROWN WHEEL & PINION
34  BTA1223 1
3.9:1 CROWN WHEEL & PINION
34  BTA535 1
3.7:1 CROWN WHEEL & PINION
34  BTA550 1
3.55:1 CROWN WHEEL & PINION
34  DIF200 1
4.55:1 CROWN WHEEL & PINION
35  U-BTA549 1
LATE TYPE DIFFERENTIAL HOUSING
No Longer Available
36  2K5943 2
DIFFERENTIAL SIDE BEARING
USE DIF136
37  2A7015 2
PLANET GEAR - LATE CARRIER ONLY
No Longer Available
38  2A7062 2
PLANET GEAR THRUST WASHER .035"
38  2A7062Z 2
PLANET GEAR THRUST WASHER .054"
39  ATA7037 2
SUN (SPIDER) GEAR
No Longer Available
40  ATA7044 3
LOCK TAB, CROWN WHEEL
41  ATA7043 6
BOLT DIFFERENTIAL CAGE
42  ATA7039 2
THRUST WASHER SUN GEAR
LATE CARRIER ONLY
43  2K7779S A/R
SHIM, DIFFERENTIAL BEARING .002"
AS REQUIRED - ORIGINAL SMALL INSIDE SHIM
43  2K7779 A/R
SHIM, DIFFERENTIAL BEARING .002"
AS REQUIRED - NON-OEM LARGE OUTSIDE SHIM
43  ATA7269S A/R
SHIM, DIFFERENTIAL BEARING .003"
AS REQUIRED - ORIGINAL SMALL INSIDE SHIM
43  ATA7269 A/R
SHIM, DIFFERENTIAL BEARING .003"
AS REQUIRED - NON-OEM LARGE OUTSIDE SHIM
43  2K7778 A/R
SHIM, DIFFERENTIAL BEARING .004"
AS REQUIRED - ORIGINAL SMALL INSIDE SHIM
43  2A7271 A/R
SHIM, DIFFERENTIAL BEARING .010
AS REQUIRED - ORIGINAL SMALL INSIDE SHIM
43  2K7271 A/R
SHIM, DIFFERENTIAL BEARING .010"
AS REQUIRED - NON-OEM LARGE OUTSIDE SHIM
44  ATA7036 1
DIFFERENTIAL CAGE
USE U-ATA7036
45  6K631 1
PIN, CROSS PIN LOCATING
No Longer Available
46  2A7016 1
CROSS PIN, PLANET GEARS
47  51K886 4
STUD, BEARING CAP
No Longer Available
48  GHF203 4
NUT, 7/16" UNF
49  GHF334 4
LOCK WASHER 7/16"
50  GHF303 4
WASHER, PLAIN 7/16"
51  21H6060 1
BREATHER, AXLE CASE
52  6K499 2
PLUG, DRAIN/FILLER
53  2A7027 1
GASKET, DIFFERENTIAL TO AXLE
USE DIF107
54  2A7142 2
RUBBER BUMP STOP
55  PS610241 4
PIN, BUMP STOP
56  2A7226 8
STUD, AXLE CASE TO DIFFERENTIAL
No Longer Available
57  GHF201 8
NUT 5/16” UNF
58  GHF332 8
LOCK WASHER 5/16"
USE WL2051
59  GHF202 2
NUT, 3/8" UNF
FOR CHECK STRAP
60  AHH7317 2
WIRE WHEEL KNOCK-OFF - 2-EAR, 12TPI RIGHT HAND
LEFT HAND THREAD
60  AHH7318 2
WIRE WHEEL KNOCK-OFF - 2-EAR, 12TPI LEFT HAND
RIGHT HAND THREADS
60  AHA7373 2
WIRE WHEEL KNOCK-OFF - 2-EAR, 8TPI RIGHT HAND
LEFT HAND THREAD
60  AHA7374 2
WIRE WHEEL KNOCK-OFF - 2-EAR, 8TPI LEFT HAND
RIGHT HAND THREADS
61  AHH7315 2
OCTAGONAL NUT - RIGHT HAND 12TPI
LEFT HAND THREADS
61  AHH7316 2
OCTAGONAL NUT - LEFT HAND 12TPI
RIGHT HAND THREADS
61  88G606 2
OCTAGONAL NUT - RIGHT HAND 8TPI
LEFT HAND THREADS
61  88G607 2
OCTAGONAL NUT - LEFT HAND 8TPI
RIGHT HAND THREADS
62  AHH5839 1
WRENCH FOR OCTAGONAL HUB NUTS
62  P1054 1
WRENCH FOR 2-EARED KNOCK OFFS
63  C27290 1
KNOCK OFF HAMMER, COPPER AND RAWHIDE
23B  FNZ506 8
WHEEL NUT WIRE WHEEL
USE GHF223
