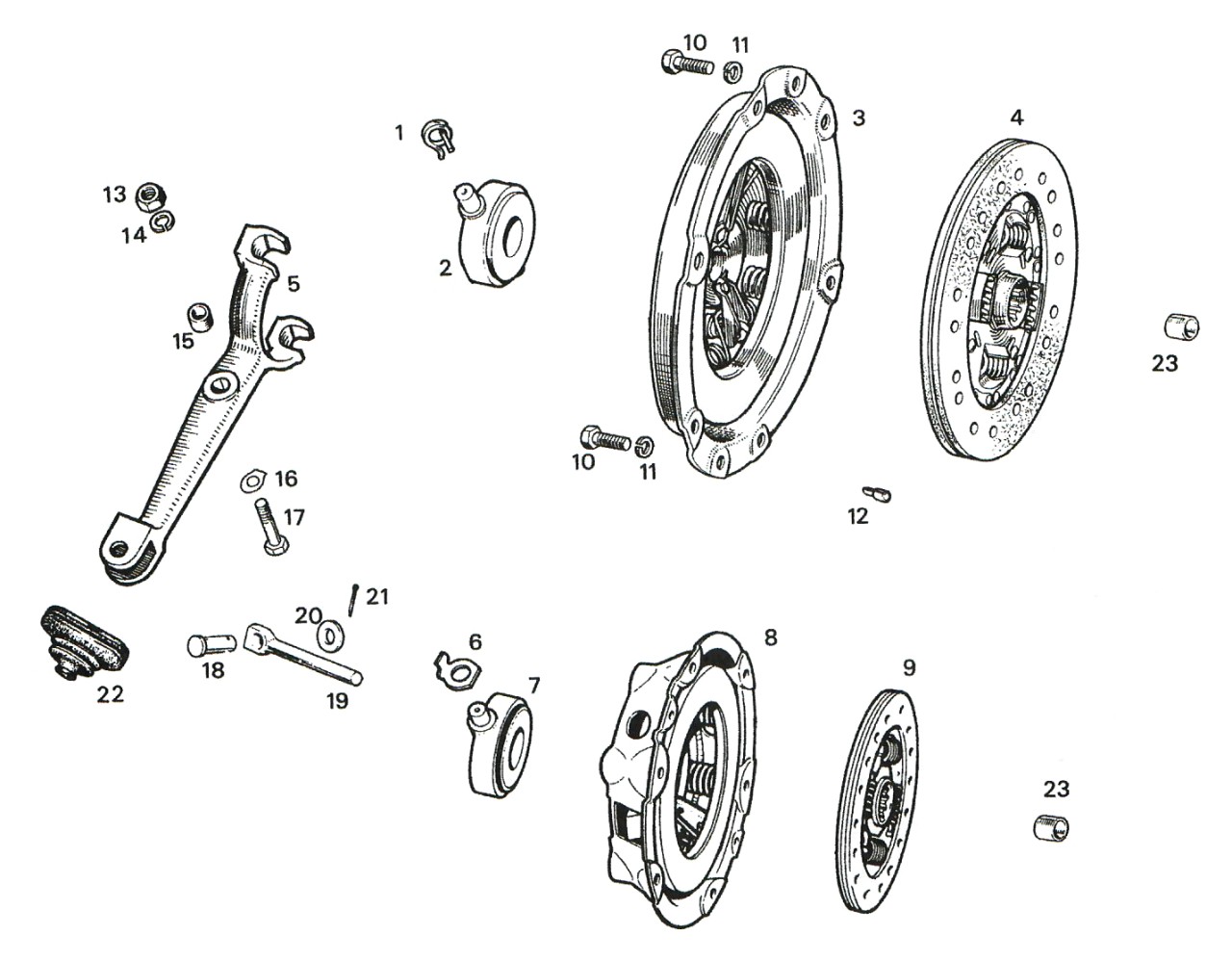

Sprite/Midget 948cc & 1098cc Clutch Components
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 1 | COM704 | 2 | CLIP RELEASE BEARING 948 |
| 2 | COM703 | 1 | RELEASE BRG 948 |
| 3 | COM701 | 1 | PRESSURE PLATE 948 6 SPRING 8 1/4" OD , 6 3/8" clutch 6 SPRING |
| 3 | COM701C | 1 | PRESSURE PLATE 948 9 SPRING USE CAM701 |
| 4 | COM702 | 1 | DISC CLUTCH 948cc INLINE 6 3/8" DIAMETER |
| 5 | 22A219 | 1 | CLUTCH FORK No Longer Available |
| 5 | 22G168 | 1 | CLUTCH FORK 1098-1275 |
| 6 | COM708 | 2 | CLIP RELEASE BEARING 1098 AND 1275 |
| 7 | COM707 | 1 | RELEASE BEARING 1098 INLINE |
| 8 | COM705 | 1 | PRESSURE PLATE 1098 INLINE 9.5" OD |
| 9 | COM706 | 1 | CLUTCH DISC 1098cc INLINE 7 3/8" DIAMETER |
| 10 | GHF120 | 6 | BOLT 5/16" UNF X .75" LONG |
| 11 | WL2051 | 6 | LOCK WASHER 5/16" |
| 12 | 1G2984 | 2 | DOWEL PIN FLYWHEEL TO PRESSURE PLATE |
| 13 | GHF201 | 1 | NUT 5/16" UNF |
| 14 | WL2051 | 1 | LOCK WASHER 5/16" |
| 15 | 2A3006 | 1 | BUSH CLUTCH RELEASE FORK MIDGET |
| 16 | 2K5813 | 1 | PIVOT BOLT LOCK TAB No Longer Available |
| 17 | 2A3289 | 1 | BOLT PIVOT THROUGH ARM 5/16 |
| 18 | CLZ517 | 1 | PIN CLEVIS CLUCH SLAVE 5/16" |
| 19 | 13H21 | 1 | PUSHROD 1098/948 SLAVE CYLINDER |
| 20 | WU2041 | 1 | PLAIN WASHER 5/16" |
| 21 | GHF502 | 1 | COTTER PIN |
| 22 | 9G141 | 1 | BOOT CLUTCH ARM |
| 23 | 10M131 | 1 | BUSH 1ST MOTION PILOT |
| COM800 | 1 | TOOL CLUTCH ALIGN ALL NOT ILLUSTRATED |
|
| COM701/KIT | 1 | CLUTCH KIT 948 INLINE CONTAINS 2, 3 & 4 |
|
| COM705/KIT | 1 | CLUTCH KIT 1098 INLINE CONTAINS 7, 8 & 9 |
