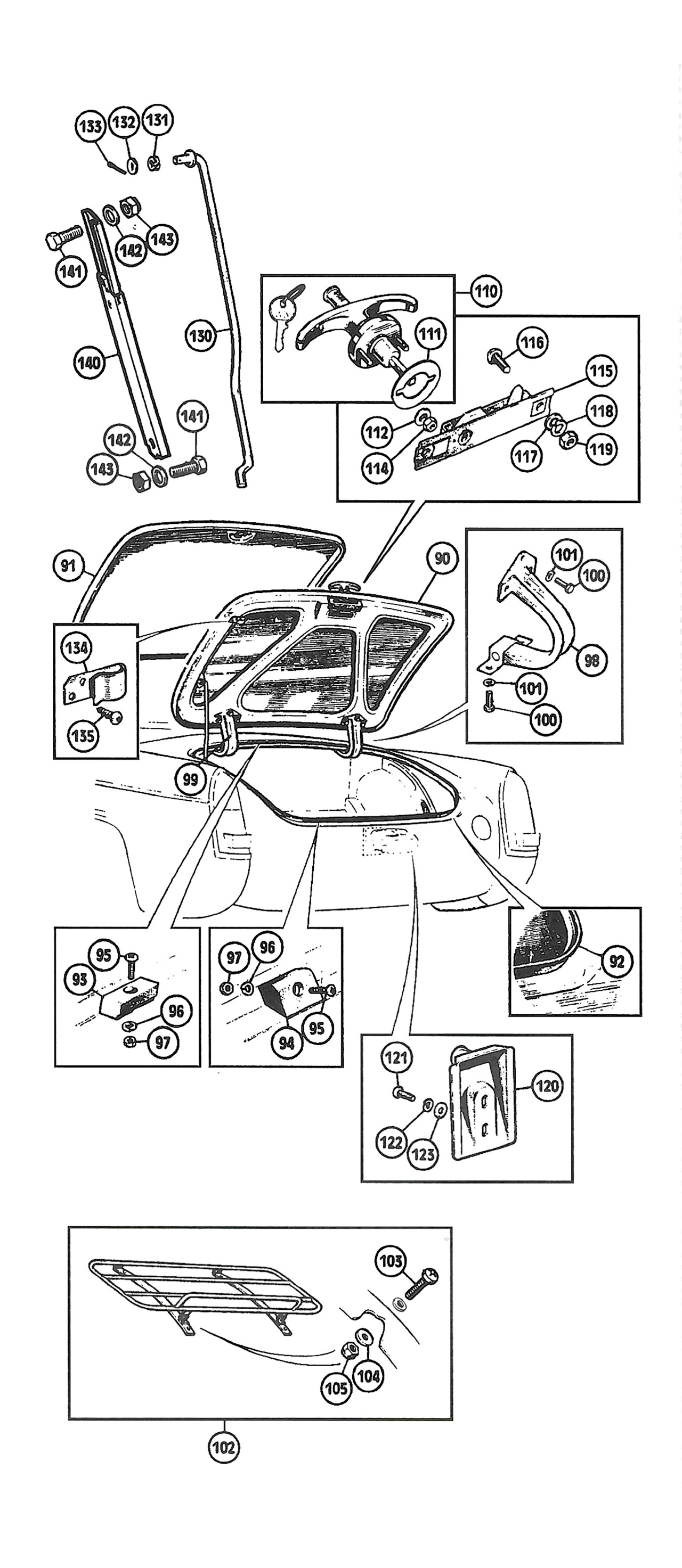

Sprite/Midget Sprite Mk IV Midget MK III Boot Lid & Fittings
Records - of
# |
Part No |
Qty |
Description |
|---|---|---|---|
| 90 | CZJ351 | 1 | BOOT LID 1962-1980 |
| 91 | BMH9909 | 1 | OUTER SKIN, BOOT LID No Longer Available |
| 92 | CHA797 | 1 | SEAL, BOOT LID |
| 93 | AHA6213 | 2 | BUFFER, BOOT LID FRONT |
| 94 | AHA6207 | 2 | BUFFER, BOOT LID REAR |
| 95 | PMZ210 | 4 | SCREW, NO.6 X 5/8" LONG BUFFER TO DRAINAGE CHANNEL |
| 96 | WL700061 | 4 | LOCK WASHER, 1/8" |
| 97 | NH806011 | 4 | NUT, NO. 6 |
| 98 | AHA6314 | 1 | BOOT LID HINGE - RIGHT HAND SPRITE & MIDGET 1962 ONWARD |
| 99 | AHA6315 | 1 | BOOT LID HINGE - LEFT HAND SPRITE & MIDGET 1962 ONWARD |
| 100 | SH604051 | 10 | BOLT, 1/4 UNF X 5/8" LONG HINGES TO BOOT LID AND REAR DECK |
| 101 | GHF331 | 10 | LOCK WASHER, 1/4" |
| 102 | AHA6252 | 1 | CHROME BOOT LID RACK - BOLT ON TYPE SPRITE & MIDGET 1962 ONWARD |
| 103 | PMP514 | 4 | SCREW, 5/16" UNF X 7/8" LONG - CHROME SPECIAL CHROME SCREW FOR LUGGAGE RACKS |
| 104 | GHF301 | 4 | WASHER, PLAIN 5/16" USE WU2041 |
| 105 | GHF222 | 4 | NUT, NYLOC 5/16" UNF |
| 110 | AHA6357 | 1 | BOOT HANDLE WITH KEYS ("T" SHAPE) FROM OCT 1961 ONWARD |
| 110 | AHA6357C | 1 | BOOT LID HANDLE ("T" TYPE) & LOCK SET NOT ILLUSTRATED |
| 111 | ALA2466 | 1 | GASKET, FIBER - HANDLE TO BOOT LID |
| 112 | GHF306 | 2 | WASHER, PLAIN 3/16" USE WA1090 |
| 114 | 53K1420 | 2 | NUT, NYLOCK FOR BOOT HANDLE |
| 115 | AHA5807 | 1 | BOOT LATCH |
| 116 | SH605051 | 2 | BOLT, 5/16" UNF X 5/8" LONG USE HF0505 |
| 117 | GFK1114 | 2 | WASHER, PLAIN 5/16" USE WU2041 |
| 118 | GFK1125 | 2 | LOCK WASHER, 5/16" USE WL2051 |
| 119 | GHF201 | 2 | NUT, 5/16" UNF |
| 120 | AHA5810 | 1 | BOOT LATCH STRIKER PLATE |
| 121 | PMZ308 | 2 | SCREW, 3/16 UNF X 1/2" LONG |
| 122 | WL700101 | 2 | LOCK WASHER, 3/16" |
| 123 | GHF306 | 2 | WASHER, PLAIN 3/16" x 3/8" OD USE WA1090 |
| 130 | AHA5811 | 1 | BOOT LID STAY 1962-OCT 1969 |
| 131 | AJD7722 | 1 | THACKERY WASHER 1962-OCT 1969 |
| 132 | GHF300 | 1 | WASHER, PLAIN 1/4" 1962-OCT 1969 |
| 133 | GHF502 | 1 | SPLIT PIN (COTTER PIN) 1962-OCT 1969 |
| 134 | AAA1524 | 1 | PROP ROD CLIP 1962-OCT 1969 |
| 135 | AB606031 | 2 | SCREW, CLIP TO BOOT LID, NO. 6 X 3/8" LONG SELF-TAPPING 1962-OCT 1969 |
| 140 | AHA9716 | 1 | TELESCOPIC STAY, BOOT LID OCT 1969 ONWARD |
| 141 | SH604051 | 2 | BOLT, 1/4 UNF X 5/8" LONG OCT 1969 ONWARD |
| 142 | GHF300 | 2 | WASHER, PLAIN 1/4" OCT 1969 ONWARD |
| 143 | GHF221 | 2 | NUT, NYLOC 1/4" UNF USE GFK3321 - OCT 1969 ONWARD |
