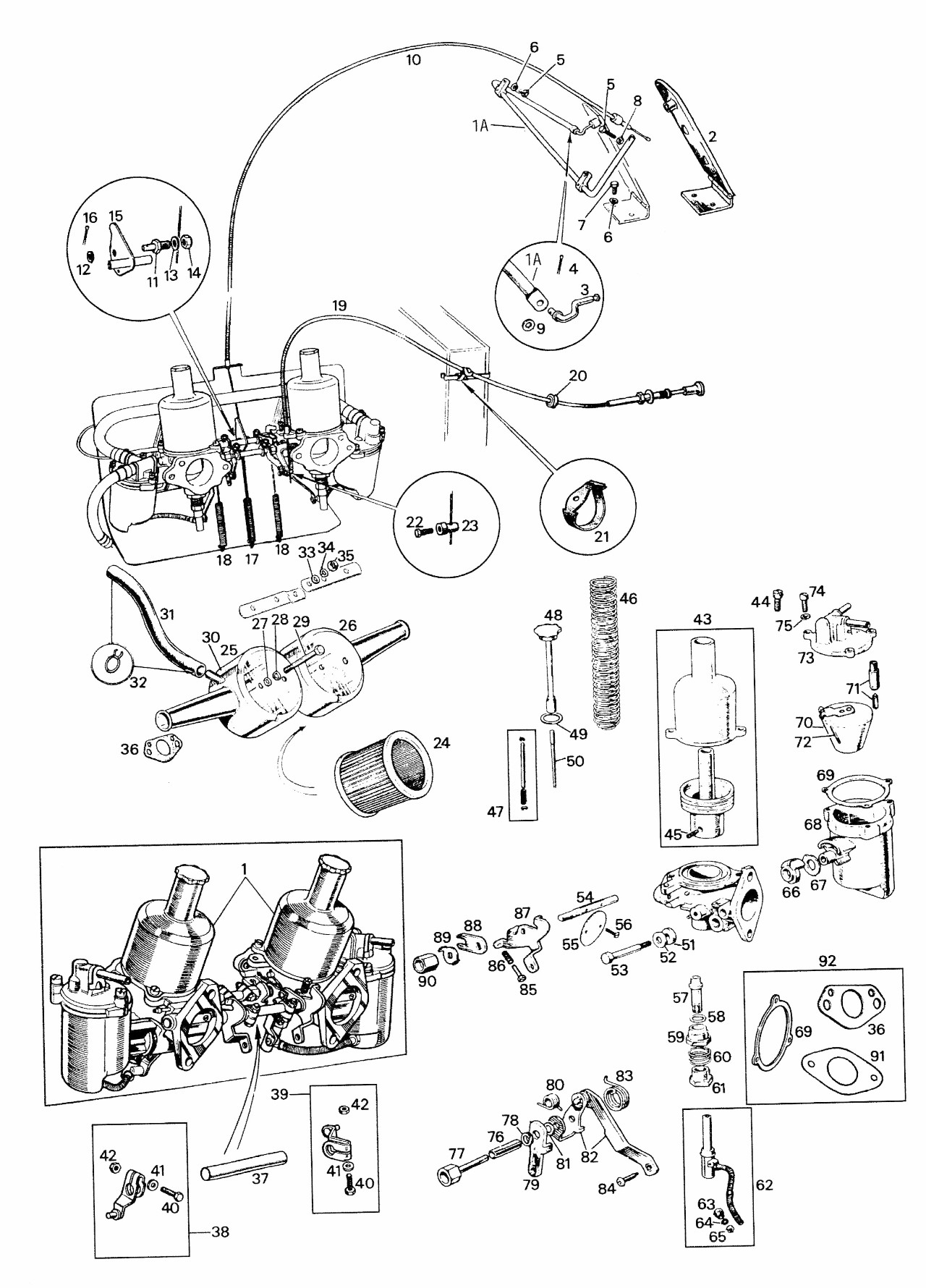

948cc & 1098cc Sprite II & Midget l Twin 11/4" Carburettor Installation - Chapter 5 Pages 2-3
Sprite Catalog Page 5-3
Records - of

No.

Part No

Description

Qty

Remarks

2A2077  CROSS LINKAGE  1
AHA6256  PEDAL ACCELERATOR ALL  1
AHA6255  LINK ACCEL PDL TO ARM  1
GHF500  SPLIT PIN  1
10  AHA5746  ACCELERATOR THROTTLE CABLE SPRIDGET 24"  1
11  ACC5062  THROTTLE ACCELERATOR CABLE TRUNNION  1
17  AEA602  SPRING THROTTLE 3.5" LONG  1 MIDDLE SPRING
18  AEC2075  THROTTLE SPRING  2 END SPRINGS
19  AHA5676  CHOKE CABLE RHD  1
19  2A2086  CHOKE CABLE BUGEYE  1 NOT ILLUSTRATED
20  RFN303  GROMMET 9/16 X 3/16  1
21  13H6107  STRAP TO HEATER  1
23  AHA6367  TRUNION CHOKE REPRODUCTION  1
24  GFE1004  AIR FILTER ELEMENT SPRIDGET TO '74  2
25  AHA8419  AIR CLEANER FRONT  1
26  AHA8420  AIR CLEANER REAR  1
29  BH505361  BOLT  4 5/16"
30  CRST121  AIR FILTER DECAL 'COOPERS'  2
31  AHA5930  BREATHER HOSE  1 AIR CLEANER TO ROCKER BOX
32  ACA5290  WIRE CLIP  2
36  ACA8014  CARB TO FILTER GASKET HS2  2
37  AUC1457  CARBURATOR LINKAGE ROD  1
38  AUE586  LEVER ASSY HS-REAR/HD-FT MULTIPLE HEALEYS  2
39  AUE587  LEVER ASSY HS-FT/HD-REAR MULTIPLE HEALEYS  2
43  AUD9181  PISTON AND COVER  2
45  AUC2057  LOCKING SCREW  2
46  AUC4587  CARB DASHPOT SPRING HS 2.5oz BLUE  2 BLUE 2.5OZ
46  AUC4387  CARB DASHPOT SPRING HS 4.5oz RED  2 RED 4.5OZ
48  GSU322  DAMPER  2
49  GSU560  SEALING RING  2
50  AUD1411  "V3" NEEDLE  2 ( SEE NEEDLE CHART FOR COMPLETE LISTING)
51  AUC1318  GROMMET  2
52  AUC1317  STEEL WASHER  2
53  AUD2891  BOLT  2
54  WZX1310  THROTTLE SHAFT HS2  2 ALSO CONTAINS NO. 56 & 89
55  WZX1320  THROTTLE PLATE DISK KIT HS2 BUTTERFLY  2 ALSO CONTAINS NO. 56
56  111-6020  SCREW THROTTLE PLATE  2
60  AUC2114  SPRING  2
61  AUC8461  MIXTURE NUT  2
62  GSU423  JET TUBE AUD9141A LEFT HAND TWIN OR SINGLE CARB HS2/4. .090  1 GREEN RING COLOUR CODE
62  GSU431  JET TUBE RIGHT HAND AUD9142 HS2 HS4  1 PINK RING COLOUR CODE
65  AUD2194  SEAL "O"RING JET TUBE  2
66  AUC1367  GROMMET FLOAT HS LEFT HAND 20 DEGREE  1
66  AUC1366  GROMMET FLOAT RIGHT HAND 20 DEGREES  1
68  AUC1310  FLOAT CHAMBER  2
69  2535  GASKET FLOAT HS2/HS4  2
70  GSU200  FLOAT HS2/HS4  2
71  CA90  NEEDLE AND SEAT for HS2/4/6  2
72  AUC1152  PIN FLOAT PIVOT  2
73  AUE266  FLOAT LID FOR HS2 AND HS4  1 FRONT & REAR
74  AUC2175  SCREW  6
75  WL700101  WASHER  6 3/16"
91  1G2624  CARB GASKET HS2 INTAKE  6
91  WZX1859  OVERHAUL KIT  1 (NOT ILLUSTRATED) COMPLETE WITH MAIN JETS, NEEDLE VALVE AND SEATS. THE METERING NEEDLES(50) HAVE TO BE ORDERED SEPERATLY
93  AUD365R&L  NEW CARBURETTORS TWIN 1 1/4"  1 PR. SUPPLIED LESS CONNECTING RODS 37, 38 & 39 GENERIC JETTING
