Chapter Quick Navigation:
1098cc and 1275cc Gearbox - Chapter 3 Pages 4-5

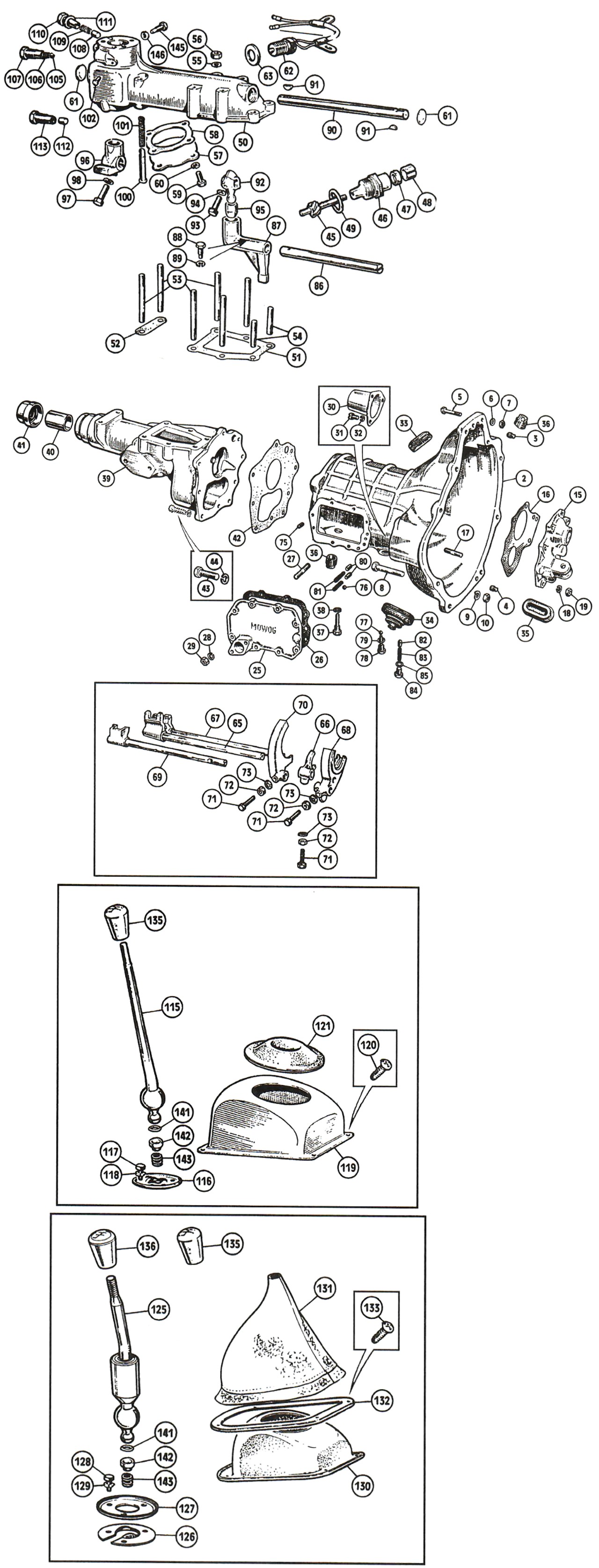

Sprite Catalog Page 3-5
Records - of

No.

Part No

Description

Qty

Remarks

RJM1109E  TRANSMISSION REBUILT 1275 RIBCASE + $300 CORE CHARGE  1 B/L
22G1114  REVERSE GEAR RIBCASE  1
22G1100  LAYGEAR 1275 - MINI & MINI COOPER S  1
88G396  MINI COOPER TRANSMISSION BEARING LAYGEAR SMALL  2
2A3023  WASHER LAYSHAFT LARGE  1 NO LONGER AVAILABLE
2A3024  WASHER L/SFT;.123-124  1 NO LONGER AVAILABLE
2A3025  LAYGEAR THRUST WASHER .125-126  1 REAR .125" TO .126"
2A3026  WASHER L/SHFT .127  1 REAR .127" TO .128"
2A3027  THRUST WASHER LAYSHFT .130-31  1 REAR .130" TO .131"
10G149  LAYSHAFT MORRIS SPRITE MIDGET  1
10  22G278  CIRCLIP LAYGEAR  2
11  22G1119  1ST GEAR SLIDER SYNCHRO RING RIBCASE  1
12  22G317  1ST GEAR SPRINGS  3
13  BLS107  BALL FOR SLIDER HUB - MINI & MINI COOPER  3
14  22G1120  END GEAR SPRITE  1
15  22G149  NEEDLE BRG 3 SYN EACH  26
16  22G1121  3RD GEAR LATE RIBCASE  1
17  22G149  NEEDLE BRG 3 SYN EACH  26
18  AEG3009  3RD AND 4TH SPEED HUB  1
19  22G317  3RD AND 4TH SPEED HUB SPRINGS  3
20  BLS107  BALL FOR SLIDER HUB - MINI & MINI COOPER  3
21  22G2033  TRANSMISSION SYNCHRO BAULK RING - ROVER  3
22  22G146  MAINSHAFT RIBCASE  1
23  22A465  MAINSHAFT BEARING  1
24  6K558  SPRING RING  1
25  2K8737  SHIM BIG BRGS .004"  1 .004", .006", .010"
26  2A3420  SPEEDO PINION GEAR 948 - 1275 SPRITE MIDGET  1
27  22A71  SPEEDO DRIVE BUSH.  1
28  22G229  1ST MOTION SHAFT-RIBC  1
29  CHM172  SMALL PILOT MINI & MINI COOPER TRANSMISSION BEARING  1 INNER
30  2A3245  1ST MOTION SHAFT BEARING  1
31  6K558  SPRING RING  1
32  2K8737
32  2K8737  SHIM BIG BRGS .004"  1 .004", .006", .010"
33  2A3035  LOCKTAB 1ST & 3RD MOTION RIBCASE  1
34  9G204  SEAL REAR TRANS ALL  1
35  2A3325  BUSH TRANS REAR  1
36  22G110  SHIFT KNOB ORIGINAL  1 UP TO SPLIT REAR BUMPER MODELS
37  22G1860  SHIFT KNOB MG MIDGET 72 ON  1 SPLIT REAR BUMPER MODELS
38  ACA5208  SHIFT GAITER BOOT SPRITE MIDGET  1 UP TO SPLIT REAR BUMPER MODELS
39  CHA69  SHIFT GAITER VINYL BLACK  1 SPLIT REAR BUMPER MODELS
40  13H4216  REVERSE SWITCH   1
41  SGB0002  ANTI RATTLE KIT  1 NLA
42  22G199  DUST PLUG TOP RIBCASE  1 TOP
43  2A5076  DUST COVER  1 SIDE
44  GSK106  GASKET SET TRANSMISSION RIBCASE & SMOOTHCASE  1
46  22G118  FRONT TRANNY COVER  1
47  10G133  GASKET FNT.G/BOX COVR  1
48  9G127  GASKET TRANSMISSION SIDE COVER  1
49  10G243  GASKET - EXTENSION TO BOX  1
50  9G221  GASKET SHFT EXT.FRT  1
51  9G222  GASKET SHFT EXT.REAR  1
52  22G328  GEAR LEVER  1
53  22G1397  LEVER SHIFT LATE MID  1 SPLIT REAR BUMPER MODELS
54  22A469  FORK 1&2 GEAR ALL RIBCASE -NLA  1 1ST AND 2ND SPEED
55  22A471  FORK 3&4 SELECTOR RIBCASE ++NLA++  1 3RD NA 4TH SPEED
56  2A3284  GEAR SELECTOR  1 REVERSE FORK
60  2K830  GEAR BOX PLUG  1 DRAIN AND FILLER
61  2A3371  SPEEDO GEAR  1
62  2K6677  NUT, FIRST MOTION SHAFT SPM 948-1098  1 MAIN SHAFT AND 1ST MOTION SHAFT
