Chapter Quick Navigation:

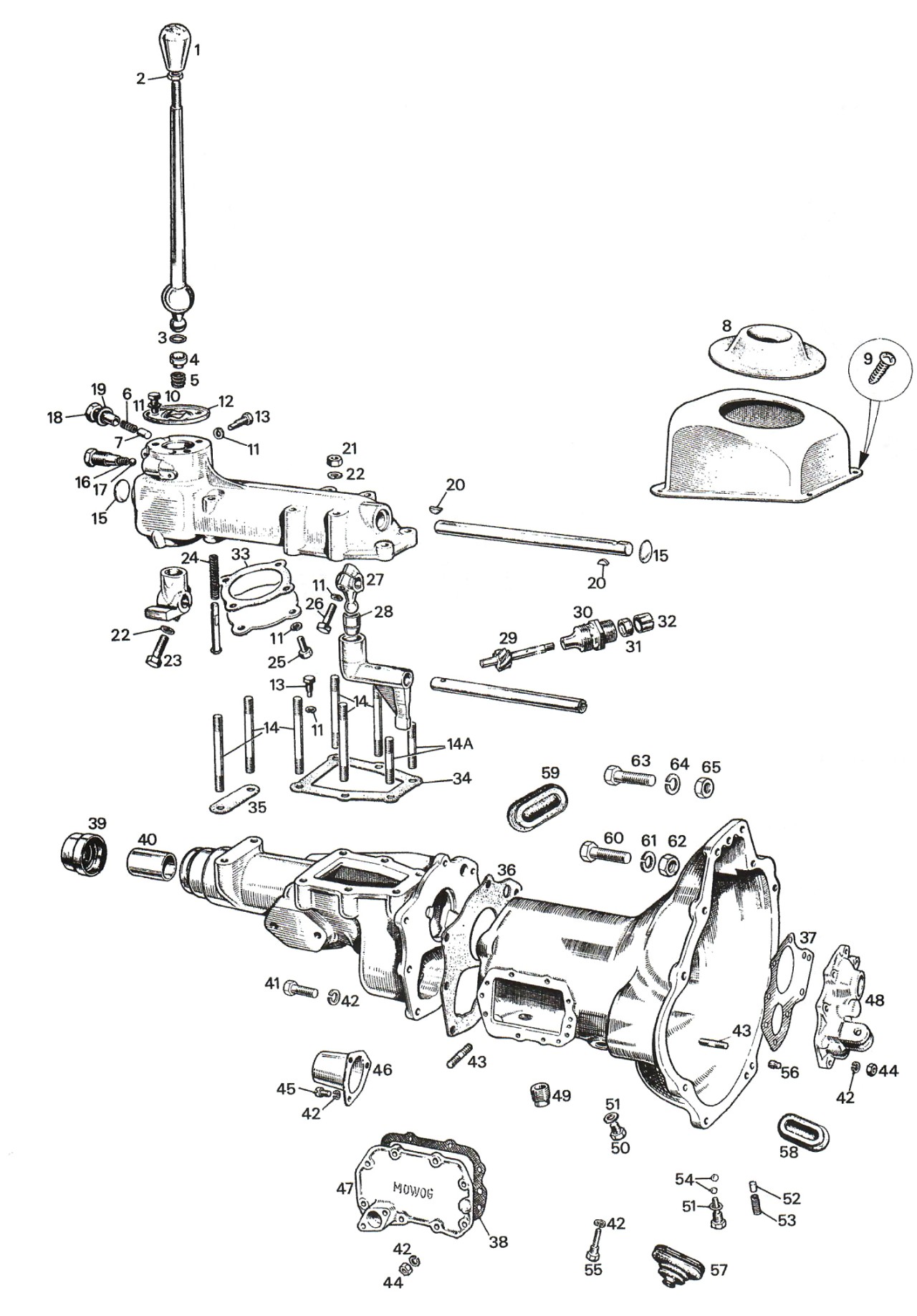

948cc & 1098cc Gearbox Casing & Remote - Chapter 3 Pages 2-3
Sprite Catalog Page 3-3
Records - of

No.

Part No

Description

Qty

Remarks

  GSK106  GASKET SET TRANSMISSION RIBCASE & SMOOTHCASE  1 ALL MODELS ( NOT ILLUSTRATED)
22G110  SHIFT KNOB ORIGINAL  1
KNOB03  SHIFT KNOB SPRITE VINYL DELUX  1 NOT ILLUSTRATED
KNOB03/W  AUSTIN HEALEY KNOB WOOD  1 NOT ILLUSTRATED
KNOB04  SHIFT KNOB MG VINYL DELUX  1 NOT ILLUSTRATED
KNOB04/W  MG KNOB WOOD  1 NOT ILLUSTRATED
53K1722  LOCK NUT  1
TRS710  0-RING SHIFT BALL TIP  1
2A3467  BUSH CUP SPRITE SHIFTER  1
2A3390  SPRING OUTER CUP REMOTE GEARSHIFT ASSEMBLY  1
AEG3123  GEARSHIFT ANTI-RATTLE SPRING  2
AEG3124  PLUNGER  2 UP TO ENG. NO. 9C UH 25508
22A84  PLUNGER ANTI RATTLE _ MINI & MINI COOPER S  2 FROM ENG. NO. 9C UH 25509 ( NOT ILLUSTRATED)
ACA5208  SHIFT GAITER BOOT SPRITE MIDGET  1 EXCESSIVE WEAR OCCURS IF FITTED UPSIDE DOWN ( NOT ILLUSTRATED)
AB608031  SCREW, LARGE, GRILLE SURROUND  4 POSI-DRIVE
10  SH604051  SCREW  3 1/4"
11  GHF331  LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS   10 1/4"
12  2A3339  RETAINING PLATE  1
13  1H3101  LOCATOR  2 1/4"
14  53K535  STUD LONG  6 5/16"
14  53K528  STUD SHORT  2 5/16"
15  2K8158  CORE PLUG  2
16  22A75  SPRING REVERSE PLUNGER _ MINI & MINI COOPER S  1
17  BLS110  BALL DETENT REVERSE PLUNGER  1
18  22A85  BOLT for ANTI RATTLE PLUNGER AND SPRING_ MINI & MINI COOPER  1 CAP
19  AEG3122  WASHER  1
20  WKN404  WOODRUFF KEY  2
21  GHF201  5/16 PLAIN NUT   8 5/16"
22  GHF332  LOCKWASHER 5/16 IN VARIOUS   9 5/16"
23  2A3335  SET SCREW  1
24  1G3863  SPRING MGB 3 SYNCHRO  1
25  SH604041  SCREW  4 1/4"
26  GHF101  SET SCREW  1 1/4"
27  2A3385  SELECTOR LEVER  1
28  2A3468  BUSH SELECTOR**NLA**  1
29  2A3420  SPEEDO PINION GEAR 948 - 1275 SPRITE MIDGET  1
30  22A71  PINION RETAINER  1
31  AAU2304  SEAL SPEEDO DRIVE SPRITE/MIDGET  1
32  2A3255  OIL SEAL RETAINER  1
33  9G233  GASKET EXT.COVER  1
34  9G221  GASKET SHFT EXT.FRT  1
35  9G222  GASKET SHFT EXT.REAR  1
36  9G252  GSKT.TRANS-BELLHOUSNG  1 948CC GEARBOX
36  22A481  GASKET  1 1098CC GEARBOX
37  9G132  GASKET FRONT COVER  1 948CC GEARBOX
37  10G133  GASKET FNT.G/BOX COVR  1 1098CC GEARBOX
38  9G127  GASKET TRANSMISSION SIDE COVER  1
39  9G204  SEAL REAR TRANS ALL  1
40  2A3325  BUSH TRANS REAR  1
41  SH604071  SCREW  9 1/4"
42  GHF331  LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS   28 1/4"
43  53K463  STUD  15 1/4"
44  GHF200  NUT undefined  15 1/4"
45  53K1435  SCREW  3 1/4"
46  1B3346  STARTER PINION COVER  1
47  88G214  SIDE PLATE  1
48  22G118  FRONT TRANNY COVER  1 1098CC GEARBOX ONLY
49  2K5830  PLUG FILL & DRAIN FOR SPRITE/MIDGET AND MORRIS TRANSMISSION  1 3/4" AF HEAD
50  6K643  REVERSE PLUNGER PLUG  1
51  2K4956  WASHER undefined  2
52  2A3108  PLUNGER G/BOX  3
53  22A75  SPRING REVERSE PLUNGER _ MINI & MINI COOPER S  3
54  BLS110  BALL DETENT REVERSE PLUNGER  2
55  2A3028  REVERSE SHAFT LOCKING SCREW  1
56  1G752  DOWEL   2
57  9G141  BOOT CLUTCH ARM  1
58  2A3076  DUST SEAL LH RUBBER  1
59  22G199  DUST PLUG TOP RIBCASE  1 1098CC GEARBOX ONLY
60  SH605091  GEARBOX TO BACK PLATE SCREW  8 5/16" 948CC ENGINES (NOT ILLUSTRATED)
60  22G173  GEARBOX TO BACK PLATE BOLT  8 5/16" 1098CC ENGINES
61  GHF332  LOCKWASHER 5/16 IN VARIOUS   8 5/16"
62  GHF201  5/16 PLAIN NUT   3 5/16"
63  BH606131  STARTER BOLT  2 3/8"
64  GHF333  LOCKWASHER 3/8 IN undefined  2 3/8"
65  GHF202  NUT VARIOUS  2 3/8"
