Chapter Quick Navigation:

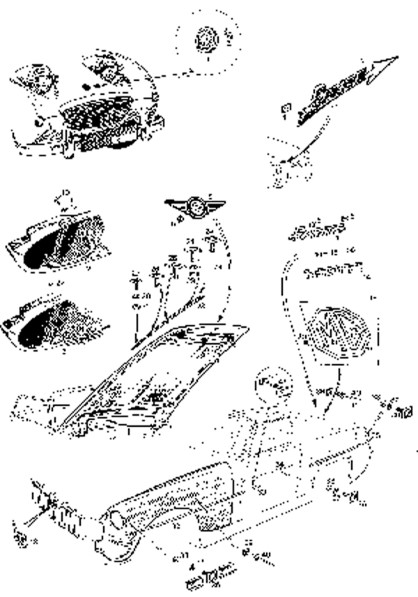

Sprite Mk I & II, Midget Mk I Badges and Chrome Mouldings - Chapter 12 Pages 21-22
Sprite Catalog Page 12-22
Records - of

#

Part No

Qty

Description

  0
SPRITE I ONLY
SPRITE I ONLY
14A4898 1
BADGE HOOD BUGEYE
14A5542 3
CLIP SPRITE BON BADGE
14A4859 1
GOLD BADGE BUGEYE BOOT
PFS104 2
CLIP MORRIS BOOT BADGE
0
SPRITE II ONLY
SPRITE II ONLY
AHA5518 1
BADGE BONNET SPRITE 61-69
14A5542 4
CLIP SPRITE BON BADGE
AHA5699 1
BOOT BADGE SPRITE 61-69
BHA4082 2
CLIP***SEE PFS104***
0
SPRITE I & II ONLY
SPRITE I & II ONLY
14B1729 1
DASH HANDLE
10  GHF200 2
NUT undefined
1/4"
11  GHF331 2
LOCKWASHER 1/4" ID SQUARE SECTION VARIOUS
1/4"
12  GHF300 2
WASHER
1/4"
12  0
MIDGET I ONLY
MIDGET I ONLY
13  ARA2148 1
BADGE GRILL MID 61-69
14  AHA5683 1
BOOT BADGE MIDGET 61-70
15  BHA4082 2
CLIP***SEE PFS104***
16  AHH5261C 1
BADGE OCTGN W/"M" "G"
KIT NOT AVAILABLE USE # 17, 18 & 19
17  AHH5261 1
BADGE OCTAGON "MG"
ONLY AVAILABLE AS PART OF AHH5261C
18  ADH2475 1
LETTER "M" for Octagon Logo
ONLY AVAILABLE AS PART OF AHH5261C
19  ADH2476 1
LETTER "G" for Octagon Logo
20  PFS103 13
RETAINER BADGE
21  AHH5258 1
BADGE DASH "MG"
22  ADB509 2
CLIP
23  14A7074 1
BONNET MOULDING
24  AHA5700 2
STUD HOOD MOLDING
25  AHA5701 1
STUD
26  AHA6257 1
CLIP NO. 4
27  AHA5702 1
CLIP NO. 5
28  WL700101 3
SPRING WASHER
3/16" CLIPS 1-3
29  GHF206 3
NUT TAPERED PIN FIX
3/16"
30  WL700061 2
SPRING WASHER
1/8" CLIPS 4 & 5
31  CNZ102 2
NUT
1/8" CLIPS 4 & 5
32  AHA5825 2
MOULDING FT FDR (2)
8 CLIPS PER MOULDING
33  AHA5822 2
COWL MOULDING MIDGET
34  AHA5823 1
DOOR MOULDING R/H MIDGET,70-74
5 CLIPS NOT ILLUSTRATED
34  AHA5824 1
DOOR MOULDING L/H MIDGET,70-74
5 CLIPS
35  AHA5818 2
MOULDING REAR FENDER
7 CLIPS PER MOULDING
36  AHA5817 6
STUD FOR MOLDING ON SPRITE/MIDGET DOORS
1 PER MOULDING ( THE STUD PLATES ARE FITTED AT THE FRT OF THE FRONT WINGS, MIDDLE OF THE DOORS, THE REARS OF THE REAR WING)
37  WL700101 6
SPRING WASHER
3/16"
38  GHF206 6
NUT TAPERED PIN FIX
3/16"
39  ALA3647 40
CLIP MG SIDE MOULDING
40  RA607096 40
POP RIVET
41  GHF1561 2
A POST MOULDING CLIP***SEE ADH 3809***
42  BHA4082 2
CLIP***SEE PFS104***
43  GAC4101 1 PR
UNION JACK PAIR undefined
NOT ILLUSTRATED
