Chapter Quick Navigation:
Grommets - Chapter 12 Pages 0-1
Sprite Catalog Page 12-1
Records - of

#

Part No

Qty

Description

  0

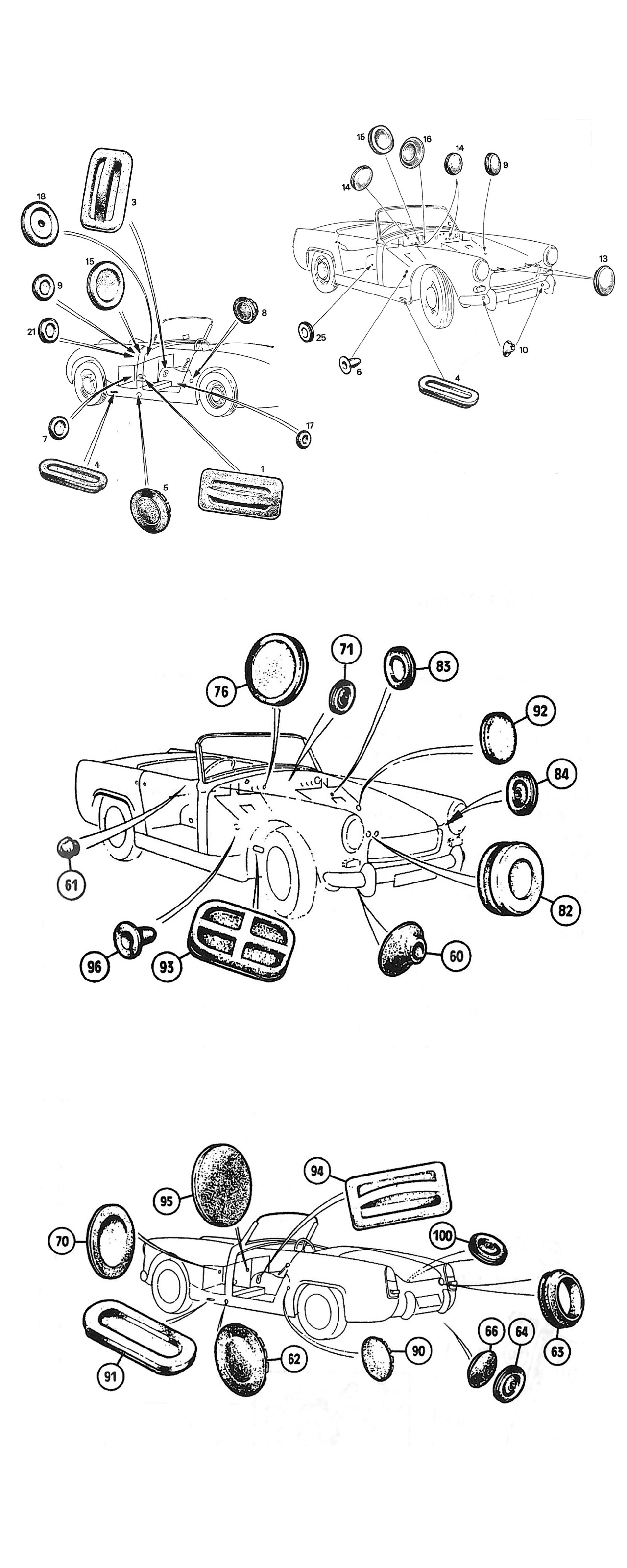

SPRITE MK I & II, MIDGET I GROMMETS
4G4920 1
R/H TOE BOX SIDE GROMMET
UP TO GAN16643 HAN611969
AHA6290 1
RH TOE BOX SIDE (NLA USE #1)
FROM GAN16655 HAN611970
4G4920 1
R/H TOE BOX SIDE GROMMET
4G6957 A/R
PLUG SILL & SLING
2H8198 2
GROMMET SILL JACKING
ADA2493 A/R
FOOTWELL SIDE BLANKNG
NOT SPRITE I
BHA4536 1
BLANKING STEER COLUMN
4G1851 1
DRIVESHAFT INSP PLUG
RFN210 1
LH FOOTWELL GROMMET***SEE RFR210***
10  AAA1645 2
GROMMET FT BMPR 62-74
11  RFN103 1
BONNET CABLE THRO' FOOTWELL
NOT SPRITE I (NLA) NOT ILLUSTRATED
12  3H2615 1
GROMMET CABLE 1.25"
13  RFN216 2
MUSSHIELD GROMMET***NLA***
14  RFN210 3
BLANKING PLUG ***SEE RFR210***
REQUIRED
15  4G2541 1
BLANKING PLUG *NO LONGER AVAILABLE*
SEE ALSO 20/24 (NLA)
16  CFP625 1
TACH CABLE BLANK PLUG
ONLY FITTED TO CARS WITH ELECTRIC TACHO'S
17  RFN206 2
REAR CROSS MEMBER GROMMET
RFR206
18  5L489 1
HARNESS/BULKHEAD GROM
19  14A716 8
DOOR HINGE PLUG 5/8" _ MINI & MINI COOPER
NOT ILLUSTRATED, NOT FITTED TO GAN2/HAN7 CARS
20  RFN303 2
GROMMET 9/16 X 3/16
NOT ILLUSTRATED
21  C5574 1
WIPER RACK GROMMET
22  RFN303 2
GROMMET 9/16 X 3/16
NOT ILLUSTRATED (ILLUS. 23)
24  RFN305 2
***NO LONGER AVAIL***
NOT ILLUSTRATED
25  RFN207 2
PLUG SEAT BELT 61-
25  0
1098cc & 1275cc RUBBER GROMMETS
26  2H8198 2/4
GROMMET SILL JACKING
27  4G6957 A/R
PLUG SILL & SLING
28  4G1851 1
DRIVESHAFT INSP PLUG
29  AHA6296 1
SLAVE CYLN. ACCESS HOLE GROMMET
30  4G4920 1
R/H TOE BOX SIDE GROMMET
31  4G9763 2
PLUG, DEMISTER OUTLET, FOOTWELL
IF HEATER NOT FITTED
32  RFN210 1
***SEE RFR210***
33  BHA4536 1
BLANKING STEER COLUMN
34  ADA2493 A/R
FOOTWELL SIDE BLANKNG
35  MGP2050 A/R
BLANKING PLUG FLOOR PAN
NOT ILLUSTRATED
