Chapter Quick Navigation:

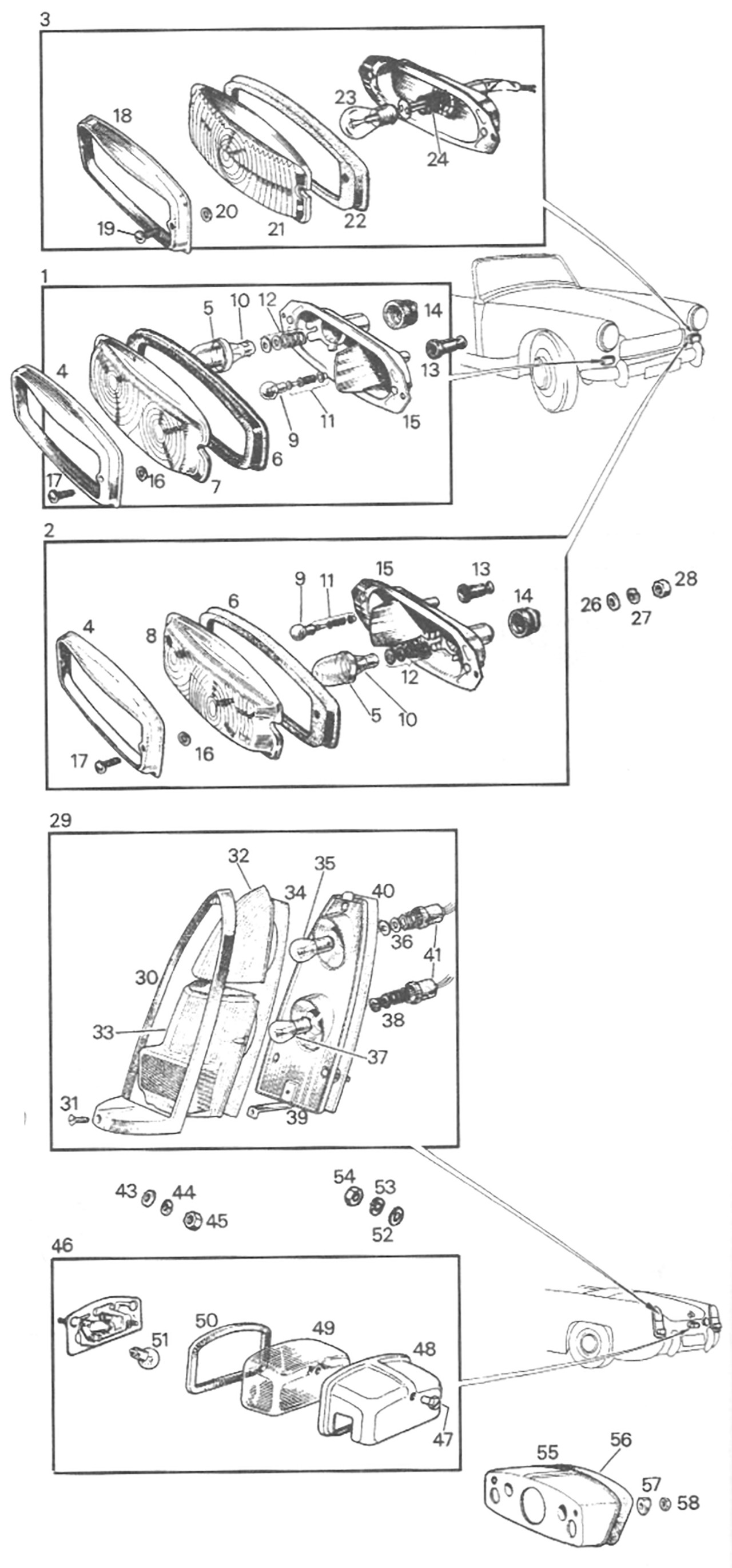

Sprite Mk II & Midget l Lighting - Chapter 10 Pages 8-9
Sprite Catalog Page 10-9
Records - of

No.

Part No

Description

Qty

Remarks

13H429  RH FRONT/SIDE FLASHER ASSY  1 AMBER TO THE RIGHT, U.K. ONLY
13H428  FRT/SIDE FLASHER R/H  1 AMBER TO THE LEFT, U.K. ONLY
BHA4204  FRONT/SIDE FLASHER ASSY  2 WHITE ONLY NOT U.K.
COMPONENTS OF 13H428/9 SIDE FLASHER LAMP (CHECK LOCAL REGULATIONS)    COMPONENTS OF 13H428/9 SIDE FLASHER LAMP (CHECK LOCAL REGULATIONS)
57H5155  TURN SIGNAL LENSE HOLDER CHROME '61 - '74 SPRITE  2 U.K. ONLY
57H5156  AMBER LENS  2 U.K. ONLY GLASS
57H5157  SEAL FRONT LAMP 61-74  2 U.K. ONLY
57H5158  LENS MIDGET 63-67  1 U.K. ONLY - PART OF 13H429
57H5159  LH GLASS LENS  1 U.K. ONLY - PART OF 13H428
GLB989  SIDE LAMP BULB  2 U.K. ONLY
10  GLB382  BULB VARIOUS  2 U.K. ONLY
11  244700  BULB HOLDER COMPONENTS  2 U.K. ONLY - SIDE LAMP
12  37H5452  BULB HOLDER COMPONENTS  2 U.K. ONLY - FLASHER LAMP
13  37H5294  SIDELIGHT GROMMET  2 U.K. ONLY
14  17H5216  INDICATOR LIGHT GROMMET  2 U.K. ONLY
15  SML0001  BACK PLATE  2 U.K. ONLY - NO DIVIDER PLATE IS NOW FITTED
15  SML0101  BACK PLATE WITH WIRING  2 U.K. ONLY (CONTAINS ITEMS 11-15 ASSEMBLED) NOT ILLUSTRATED
16  21G9057  RUBBER SEAL  2 U.K. ONLY
17  17H5400  SCREW T/S LENS BUGEYE  2 U.K. ONLY
17  COMPONENTS OF BHA4204 SIDE FLASHER LAMP (NOT U.K.)    COMPONENTS OF BHA4204 SIDE FLASHER LAMP (NOT U.K.)
18  57H5155  TURN SIGNAL LENSE HOLDER CHROME '61 - '74 SPRITE  2 '61-'69
19  17H5400  SCREW T/S LENS BUGEYE  2
20  21G9057  RUBBER SEAL  2
21  57H5307  CLEAR LENS  2
21  37H4738  PARKING TURN SIGNAL FRONT AMBER '61-69 SPRITE  2
22  57H5157  SEAL FRONT LAMP 61-74  2
23  1157  LIGHT BULB PARKING TURN SIGNAL TAIL LIGHT LAMP  2
24  37H5459  BULB HOLDER FIXINGS  2
24  REAR STOP/TAIL FLASHER LAMP    REAR STOP/TAIL FLASHER LAMP
29  BHA4175  LAMP RR ERLY **NLA**  2 AMBER AND RED LENS 53916
29  BHA4176  ALTERNATIVE REAR LAMP ASSY  2 NOY U.K. RED LENS ONLY 54572304 NOT ILLUSTRATED
30  57H5355  LENS RIM REAR 61-69  2
31  RMP308  SCREW MIRROR BASE  2 3/16"
32  57H5354  UP RR AMBER;61-69  2
32  57H5359  LENS REAR FLASHER 61-67  2 NOT U.K. 54572480 NOT ILLUSTRATED
33  57H5357  LENS STOP/TAIL 61-67 SPRITE  2 54572411
34  57H5356  GASKET LENS TAIL REAR '61 - '69 SPRITE  2
35  1073  TURN SIGNAL BULB SINGLE ELEMENT  2
36  37H5452  BULB HOLDER FITTINGS  2
37  1157  LIGHT BULB PARKING TURN SIGNAL TAIL LIGHT LAMP  2
38  37H5459  BULB HOLDER FITTINGS  2
40  57H5359  LENS REAR FLASHER 61-67  2
41  37H5525  CABLE GROMMET  4
41  NO. PLATE LAMP    NO. PLATE LAMP
46  56790  LICENSE NUMBER PLATE LIGHT LAMP ORIGINAL TYPE  1 CHROME PLATED
48  502264  CHROME COVER  1
49  54570354  GLASS LENS for REAR NUMBER PLATE LAMP  1
50  57H5368  SEAL NUMBER PLATE LAMP  1
51  LLB989  BULB PANEL BAYONET 6 watt  A/R
55  AHA5809  MOUNTING PLINTH  1
56  AHA5806  PLINTH TO BODY GASKET  1
