Chapter Quick Navigation:
Sprite Mk I & II, Midget Mk I Wiring Harness & Fixings - Chapter 10 Pages 4-5

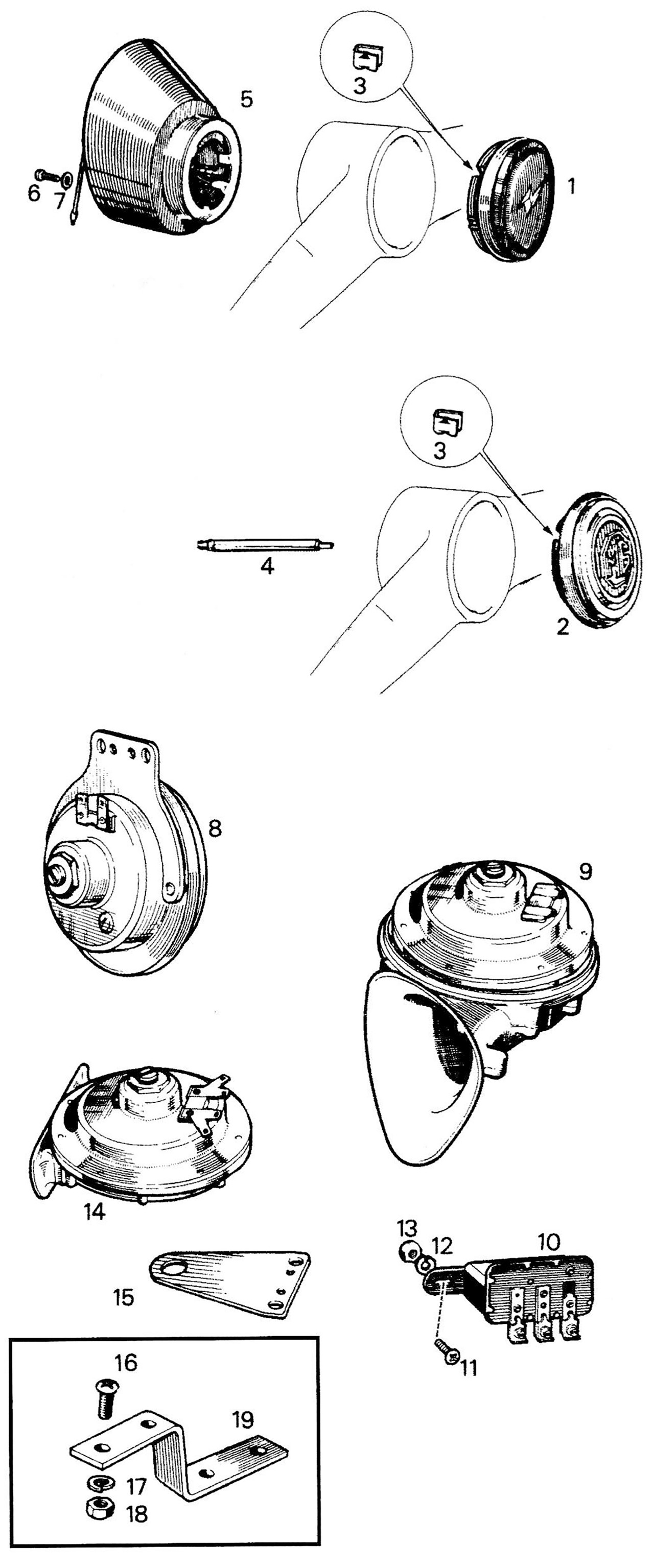

Sprite Catalog Page 10-5
Records - of

No.

Part No

Description

Qty

Remarks

ML1721BB  MK1 (BUGEYE) DIMMER - BRAIDED LACQ.  1 FLAG EYELET TERMINALS AT DIP-SWITCH
ML701  WIRING HARNESS MK1 SPRITE 58-61 WIRE & WRAP PVC  1 MAIN=2A9071 OR AHA5479, TAIL=2A9072
ML721  WIRING HARNESS MK1 SPRITE 58-61 WIRE PVC/WRAP CLOTH  1 MAIN=2A9071 OR AHA5479, TAIL=2A9072
ML721BB  MK1 (BUGEYE) BRAIDED LACQ. CABLE  1 MAIN=2A9071 OR AHA5479, TAIL=2A9072
1ML1721  MK1 59-61 (BUGEYE) DIMMER - BRAID  1 FLAG EYELET TERMINALS AT DIP-SWITCH
ML702  WIRING HARNESS 2pc 61' MK2 SPRITE/61-62' MK1 MIDGET  1 MAIN=AHA5655, TAIL=AHA5656
ML722  WIRING HARNESS 2PC 61 MK2 SPRITE/61-62 MK1 MIDGET  1 MAIN=AHA5655, TAIL=AHA5656
ML703  WIRING HARNESS FOR 62-64' MK2 SPRITE/62-63 MK1 MIDGET 1098  1 MAIN=AHA5655, TAIL=AHA5656
ML723  WIRING HARNESS 62-64' MK2 SPRITE/62-63' MK1 MIDGET  1 MAIN=AHA5655, TAIL=AHA5656
ML1702  MK2 62-64 - PVC  1 FORK TERMINALS AT DIP SWITCH
ML1722  MK2 62-64 - BRAID  1 FORK TERMINALS AT DIP SWITCH
ML704  WIRING HARNESS 64-66 MK3 SPRITE/63-66 MK2 MIDGET  1 MAIN=AHA7636 OR 7780, TAIL=AHA7637
ML724  WIRING HARNESS 64-66 MK3 SPRITE/63-66 MK2 MIDGET  1 MAIN=AHA7636 OR 7780, TAIL=AHA7637
ML1704  WIRING HARNESS -- DIMMER SWITCH HORNS LHD LATE  1 SPADE TERMINALS AT DIP-SWITCH
ML1724  MK3 64-66 - BRAID, DIMMER  1 SPADE TERMINALS AT DIP-SWITCH
ML1724  MK4 1966 - PVC  1 MAIN=AHA8156, TAIL=AHA7637
ML1725  MK4 1966 - BRAID  1 MAIN=AHA8156, TAIL=AHA7637
ML1706  MK4 1967 - PVC  1 MAIN=AHA8422, TAIL=AHA8421
ML1726  WIRING HARNESS 1967 SPRITE CLOTH BRAID  1 MAIN=AHA8422, TAIL=AHA8421
ML1707  MK4 1968 - PVC  1 MAIN=AHA8692, TAIL=AHA8421
ML1727  MK4 1968 - BRAID  1 MAIN=AHA8692, TAIL=AHA8421
ML1704  WIRING HARNESS -- DIMMER SWITCH HORNS LHD LATE   1 SPADE TERMINALS AT DIP-SWITCH
ML1724  MK4 - BRAID, DIMMER  1 SPADE TERMINALS AT DIP-SWITCH
ML1708  MK4 1969 - PVC - MAIN HARNESS  1 AHA8953
ML1731  MK4 - PVC - TAIL HARNESS  1 AHA8421
ML1709  MK4 69-70 - PVC - MAIN HARNESS  1 AHA9611
ML1732  MK4 69-70 - PVC - TAIL HARNESS  1 AHA9613
ML1704  WIRING HARNESS -- DIMMER SWITCH HORNS LHD LATE  1 SPADE TERMINALS AT DIP-SWITCH
CWB322  CRIMP-ON BULLET MALE WIRE CONNECTOR  A/R FIXINGS MALE
850651  ADA3583OR FEMALE 1 WIRE GANG FOR ROUND BULLETS  A/R FIXINGS
850641  CONNECTOR FEMALE 2 WIRE GANG FOR ROUND BULLETS  A/R FIXINGS FEMALE
CWB300  CONNCTR 3 WIRE**NLA**  A/R FIXINGS
47H5499  17.5 AMP DOUBLE SPADE  A/R FIXINGS
47H5496  17.5 AMP SINGLE SPADE  A/R FIXINGS FEMALE
47H5419  35 AMP SINLE SPADE  A/R FIXINGS
10  5L287  17.5 AMP DOUBLE SLEEVE  A/R FIXINGS
11  5L286  17.5 AMP SINGLE SLEEVE  A/R FIXINGS INSULATOR COVER
12  5L289  35 AMP SINGLE SLEEVE  A/R FIXINGS
15  RFN303  GROMMET 9/16 X 3/16  1 WIRING GROMMETS
16  RFN305  WIPER MOTOR CABLE***NO LONGER AVAIL***  1 WIRING GROMMETS
17  RFN110  GROMMET 1-5/16 OD  2 WIRING GROMMETS
20  6K490  CABLE TO BONNET FLANGE  2 CABLE CLIPS SPRITE I ONLY
30  37H5181  INSTRUMENT ILLUMINATION  5 BULB HOLDERS
31  57H5445  IGNITION WARNING  1 BULB HOLDERS
32  13H1927  MAIN BEAM WARNING  1 BULB HOLDERS
33  C611  BULB HOLDER SPEEDO SINGLE WIRE  1 BULB HOLDERS
34  27H5596  FLASHER WARNING LAMP  1 BULB HOLDERS NOT ILLUSTRATED
35  LLB987  DASH BULB PANEL - SCREW TYPE  A/R BULB HOLDERS
36  5L489  HARNESS/BULKHEAD GROM  1 WIRING GROMMETS
