Ignition - Chapter 10 Pages 2-3

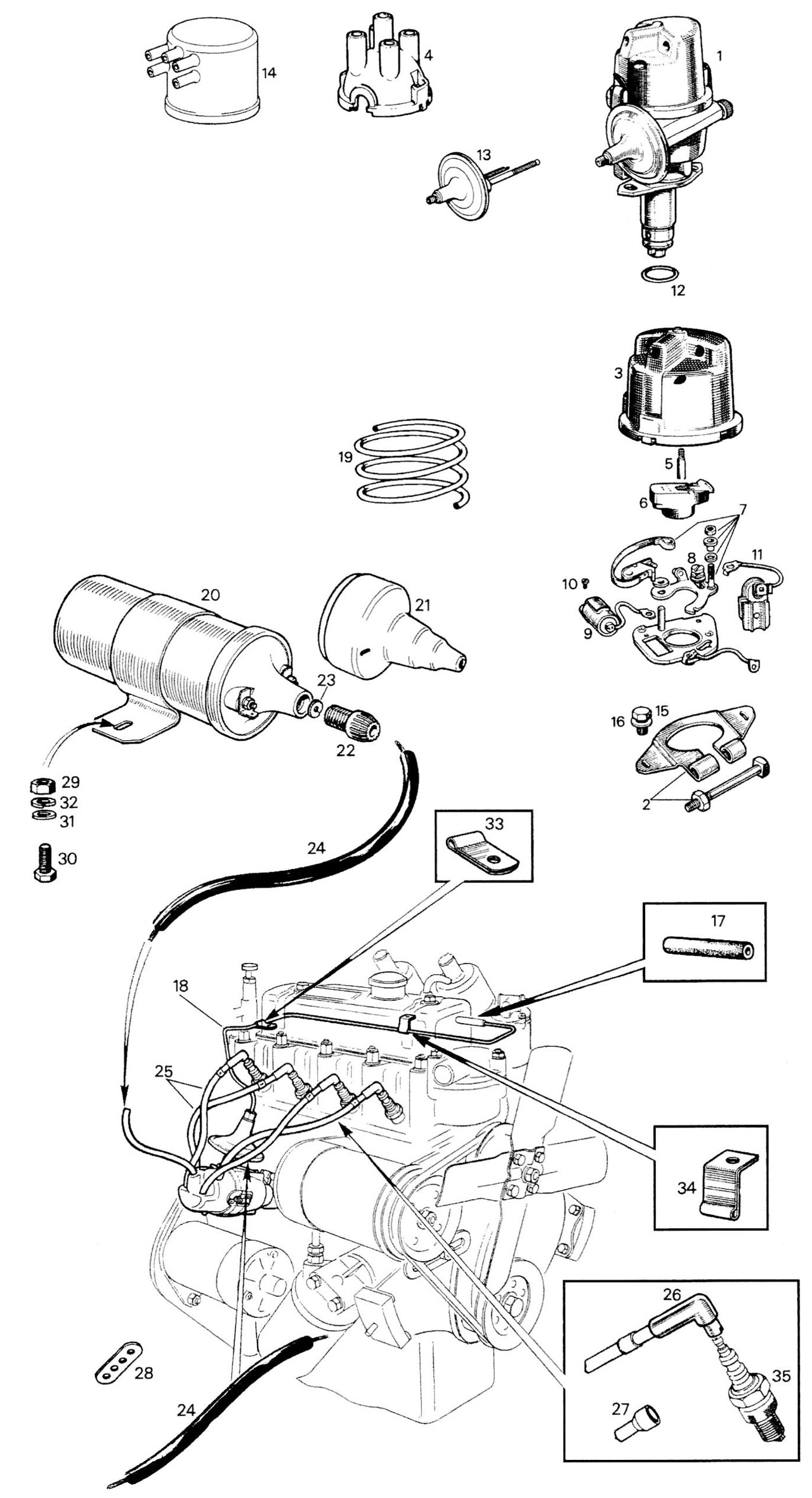

Sprite Catalog Page 10-3
Records - of

No.

Part No

Description

Qty

Remarks

DST101  DISTRIBUTOR LUCAS 25D w/ SCREW ON VAC  1 (LU 40772) SPRITE I
3H2138  DISTIBUTER CLAMP***SEE 501134***  1
DC1  SIDE ENTRY DISTRIBUTER CAP  1
DC6  CAP DISTRIBUTOR TOP ENTRY for 23D / 25D  1 ALTERNATIVE ON LHD CARS ONLY
262703  BRUSH & SPRING  1
RA1  ROTOR ARM  1
GCS101  POINTS CONTACT SET for 23D / 25D PRE '74  1 QUICK FIT
GCS111  POINTS  1 COMPETITION 32 oz.
GCS1001  CONTACT RETAINING SCREW  1
C1/DCB101  CONDENSER 23D / 25D PRE'74  1
10  GSC1001  CONDENSER RETAINING SCREW  1
11  54413549  LEAD LOW TENSION  1 SPADE TERMINAL
11  37H2981A  LOW TENSION TERMINAL  1 SCREW-ON TERMINAL - NLA NOT ILLUSTRATED
12  188639  O RING DISTRIBUTOR  1
13  54411101  VACUUM UNIT W/SCREW  1 REPLACEMENT UNIT WITH PUSH ON VACUUM PIPE CONNECTOR
13  54414868  VAC. ADVANCE UNIT 25D  1 REPLACEMENT UNIT WITH PUSH ON VACUUM PIPE CONNECTOR NOT ILLUSTRATED
14  8G1090  WATER PROOF COVER KIT***USE 8G726***  1 SIDE ENTRY DISTRIBUTOR CAP, INCLUDES 14, 21, 27
15  SH604041  DISTRIBUTOR MOUNTING SCREW  2 1/4"
16  GHF321  LOCK WASHER undefined  2 1/4"
17  ACH9041  VACUUM CONNECTOR STRAIGHT RUBBR  1
17  12B2095  DISTRIBUTOR VACUUM ADVANCE PIPE CONNECTOR STRAIGHT  1 NOT ILLUSTRATED
18  AEA447  VACUUM PIPE  1 SPRITE I
18  AEA579  VACUUM PIPE  1 SPRITE II & MIDGET I NOT ILLUSTRATED
19  37H4229M  VACUUM PIPE - PLASTIC (PART OF VAC001 KIT)  1m MIDGET I ALTERNATIVE TO 18
20  45212  COIL SCREW-IN TYPE  1 SPADE CONNECTORS
20  DLB101  COIL LUCAS STOCK  1 SPADE CONNECTORS NOT ILLUSTRATED
21  8G727  WATERPROOF COVER COIL  1 USE 8G1090
22  408120  NUT ACORN COIL WIRE  1 SCREW IN HT LEAD ONLY
23  214279  WASHER COPPER PLUG WIRE  1 SCREW IN HT LEAD ONLY
24  AAA5981M  BLACK H.T. LEAD  2m COPPER CORE
24  TT2982M  YELLOW/BLACK H.T. LEAD  2m COMPETITION H.T. LEAD NOT ILLUSTRATED
25  GHT102  WIRE SET FOR DC1 CAP (side entry)  1 PUSH ON COIL CONNECTOR
25  GHT105  WIRE SET TOP  1 PUSH ON COIL CONNECTOR
25  GHT230  WIRE SET IGN.  1 PUSH ON COIL CONNECTOR
25  GHT241  WIRE SET TURBO METRO and MINI HIGH PERFORMANCE  1 PUSH ON COIL CONNECTOR
25  C-27H7779  IGNITION SPARK PLUG WIRE SET ROVER COMPETITION 8MM  1 PUSH ON COIL CONNECTOR
26  SUP4  WIRE SET IGN- no longer available  1 PUSH ON COIL CONNECTOR - COPPER CORE
26  WCX600  REPLACEMENT PLUG CAP  4
27  8G728  WATERPROOF COVER  4 USE 8G1090
27  LHT753  SPARK PLUG IGNITION WIRE LEAD SET 90 DEG ORIGINAL  1 PUSH ON COIL CONNECTOR
28  1G2673  SPACER IGN. WIRE  1
33  AEA581  CLIP  1
34  ACH9009  CLIP  1
35  N9Y  CHAMPION SPARK PLUG  4
35  GSP163  UNIPART SPARK PLUG  4
35  BP6ES  NGK SPARK PLUG STANDARD FOR MINI & MINI COOPER, SPRITE, MG  4
